General Appearance

Cleaning Required

No

S.O.S. Taken

Yes

Cab or Canopy

Good

Counterweight

Good

Decals

Good

Draw Bar

Good

Fenders

Good

Fuel Tank

Good

Grab Irons

Good

Hood

Good

Main Frame Welds

Good

Paint

Good

Sheet Metal

Good

Steps / Ladder

Good

Safety Items

ROPS

Yes

ROPS Certification Plate

Yes

Back Up Alarm

Good

Horn

Good

Parking Brake - SAFETY ITEMS

Good

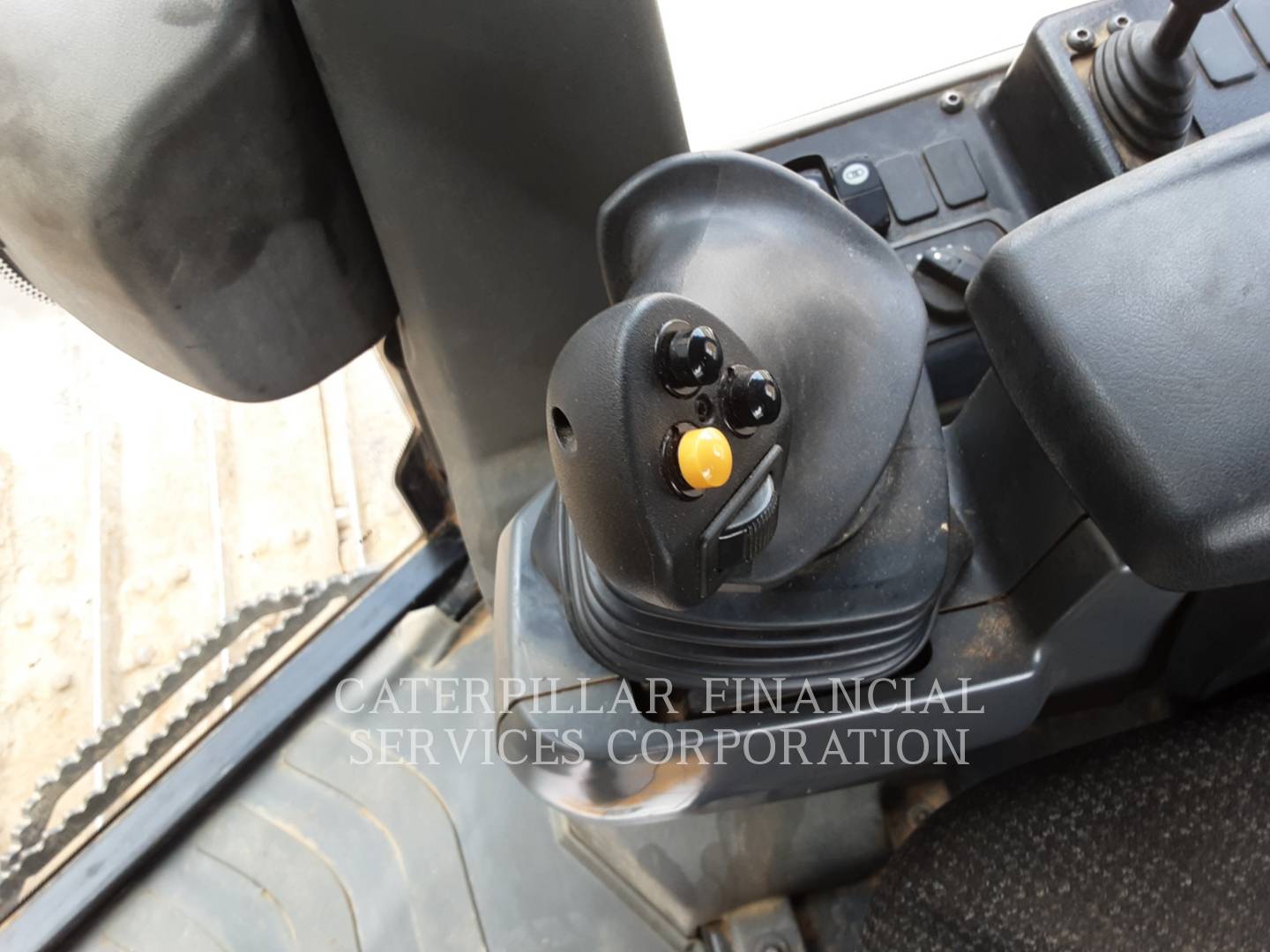

Gauges, Operator Station, Console

Current O&MM

Yes

Current Parts Manual

Yes

Current Safety Manual

Yes

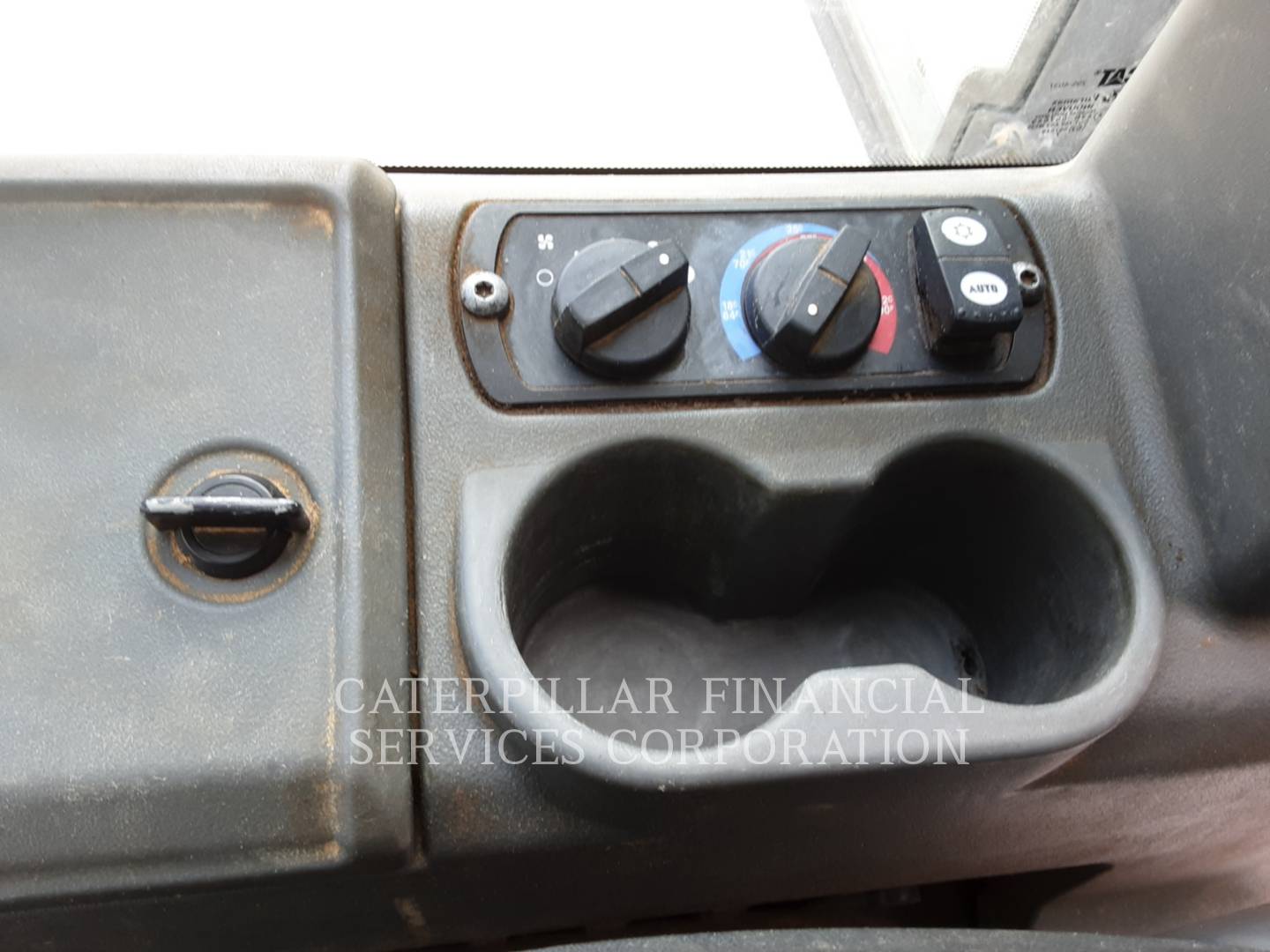

Air Conditioner

Fair

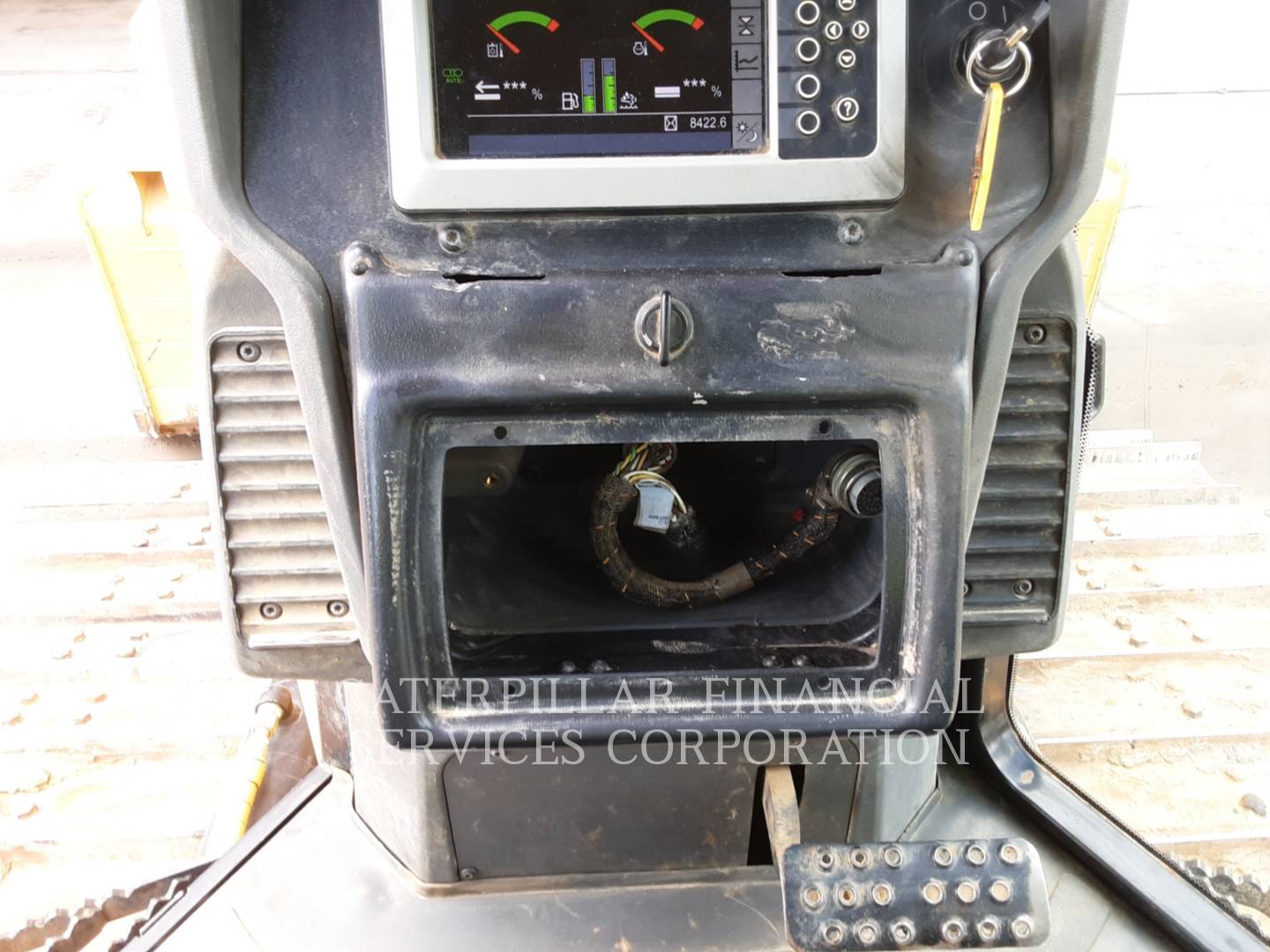

Dash Console

Fair

Gauges

Good

Glass/Mirrors

Good

Heater

Good

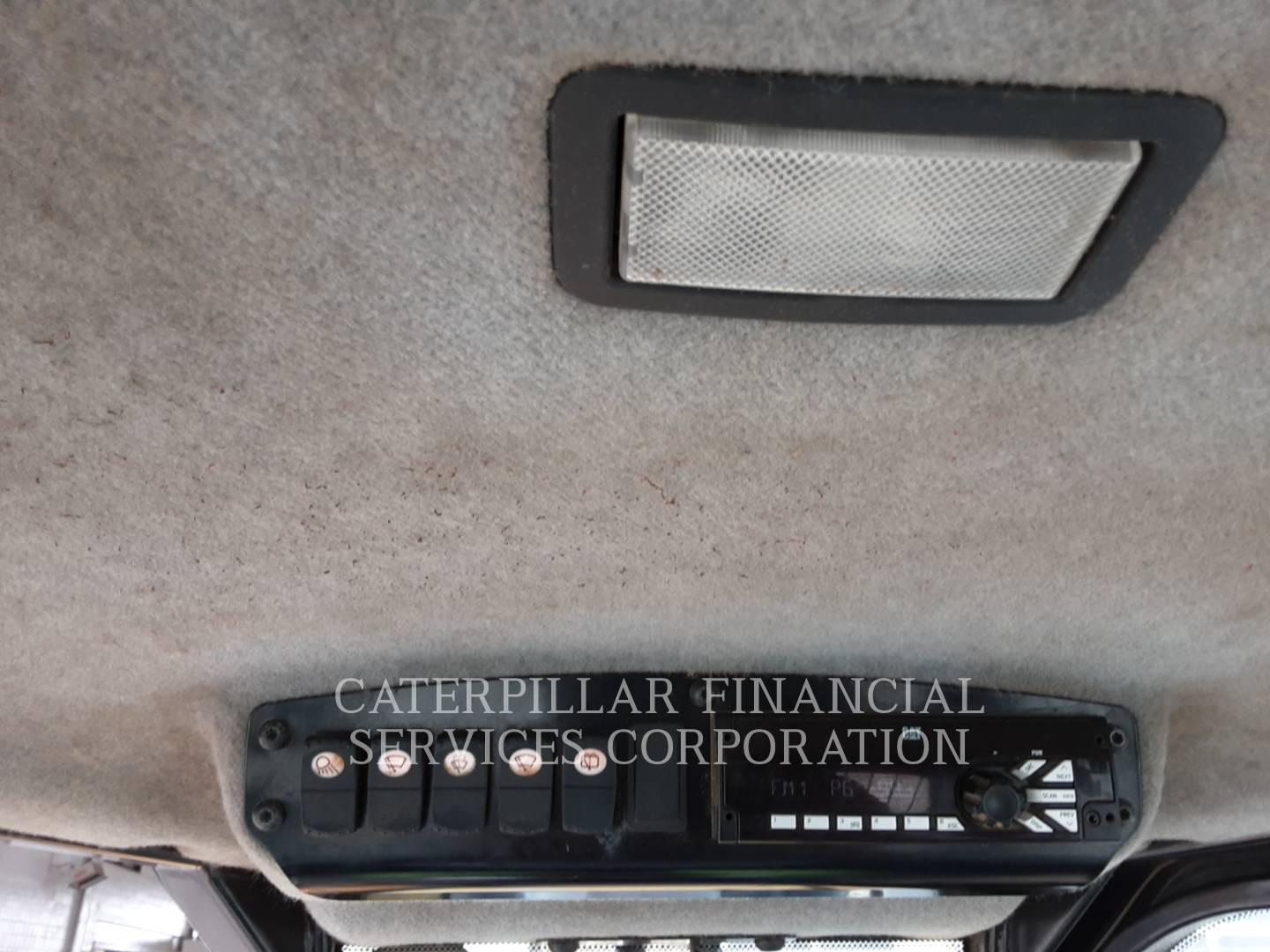

Interior Lights

Good

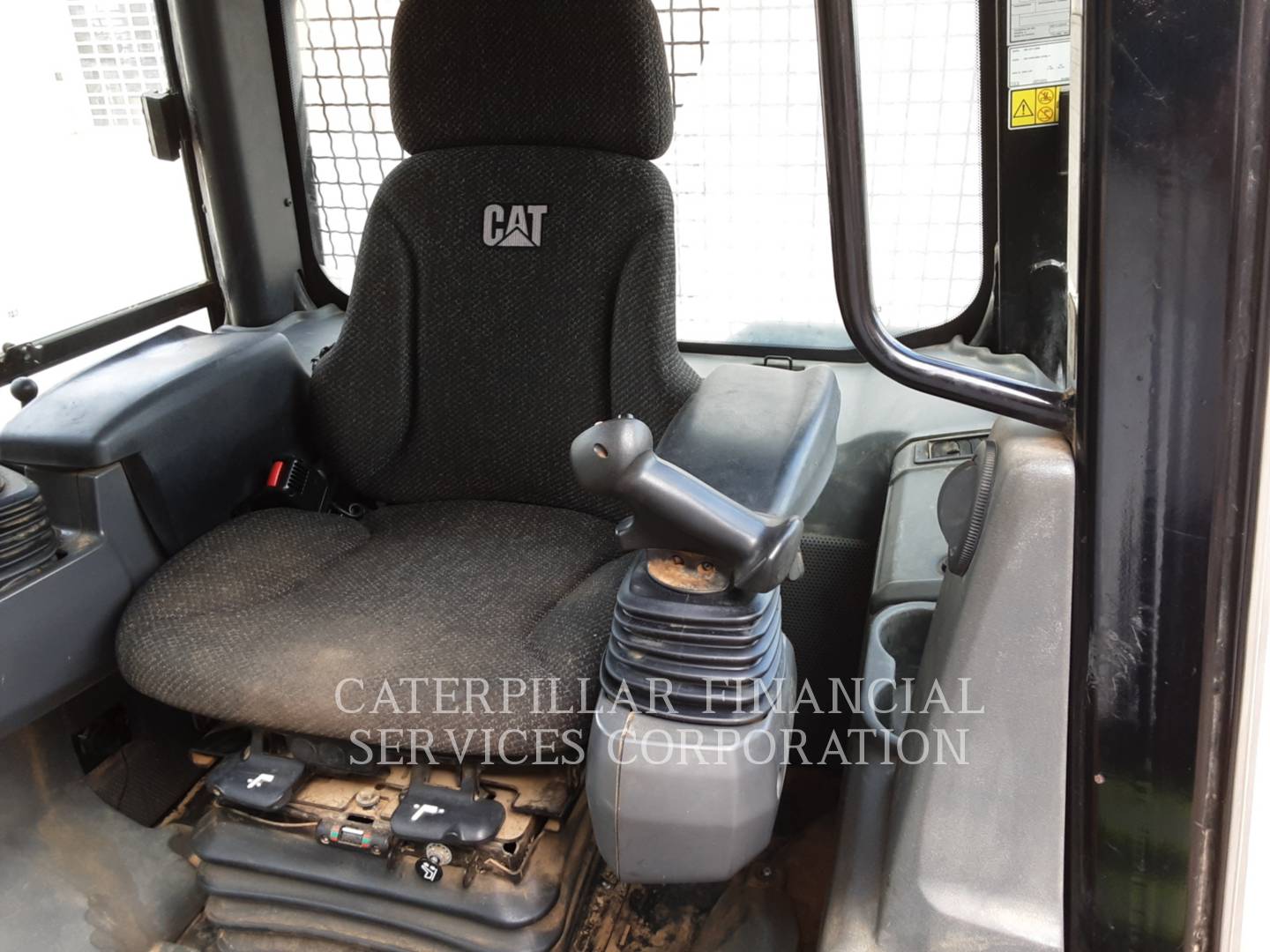

Seat Cushion / Arm Rest

Good

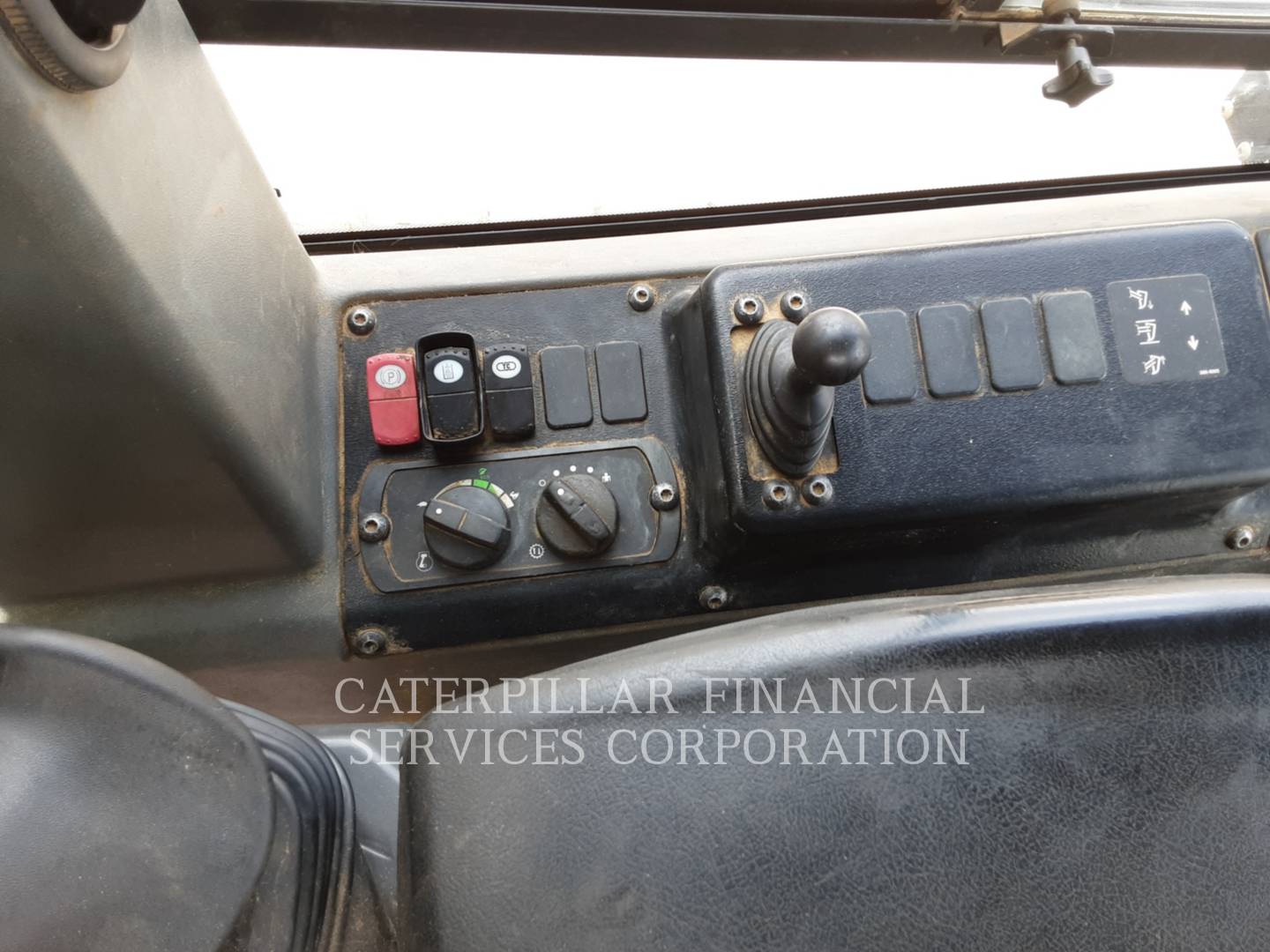

Switches

Good

Windshield Wipers

Fair

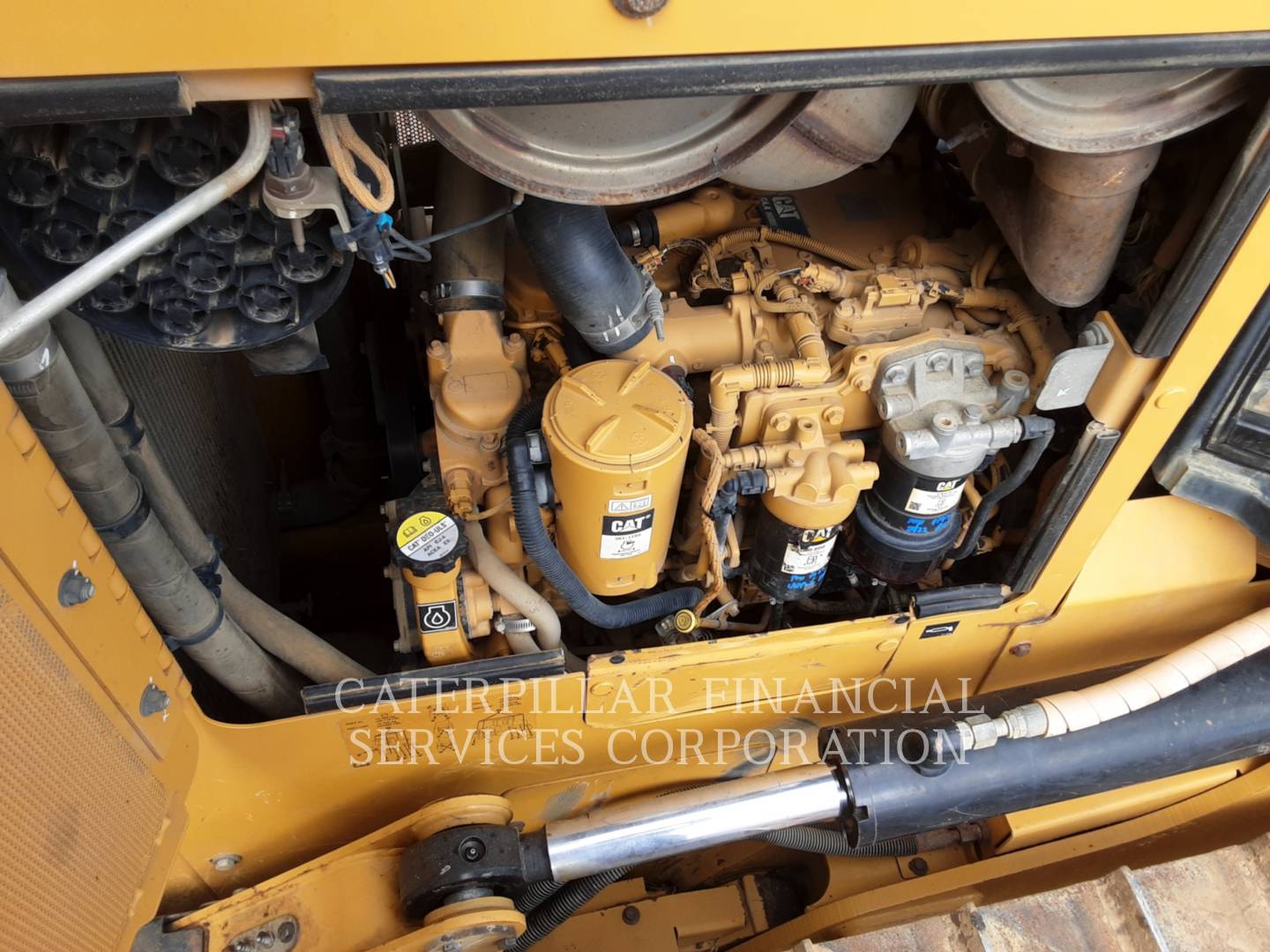

Engine

Blow By

No

Compression in Radiator

No

Fluid Levels OK?

Yes

Knocking

No

Oil Leaks

No

Water in Oil

No

Air Cleaners

Good

Engine Supports

Good

Fuel Injection System

Good

Operating Condition - ENGINE

Good

Turbocharger / Blower

Good

Cooling System

Folded Core Radiator

No

Leaks - COOLING SYSTEM

No

Modular Radiator

No

Standard Radiator

Yes

Belts / Pulleys - COOLING SYSTEM

Good

Coolers

Good

Fan

Good

Hoses

Good

Radiator

Good

Water Pump

Good

Electrical, Starting And Charging System

Block Heater

No

Ether Aid

No

Alternator

Good

Batteries / Cables

Good

Starter

Good

Wiring

Good

Transmission

Cooler

Good

Lines / Fittings - TRANSMISSION

Good

Transmission - Forward Shifts

Good

Transmission - Reverse Shifts

Good

Steering

Steering Operating Condition

Good

Hydraulics

Leaks - HYDRAULICS

No

Angle Cylinder

Fair

Hose Lines

Good

Lift Cylinders

Good

Overall Operating Condition

Good

Tilt Cylinder

Fair

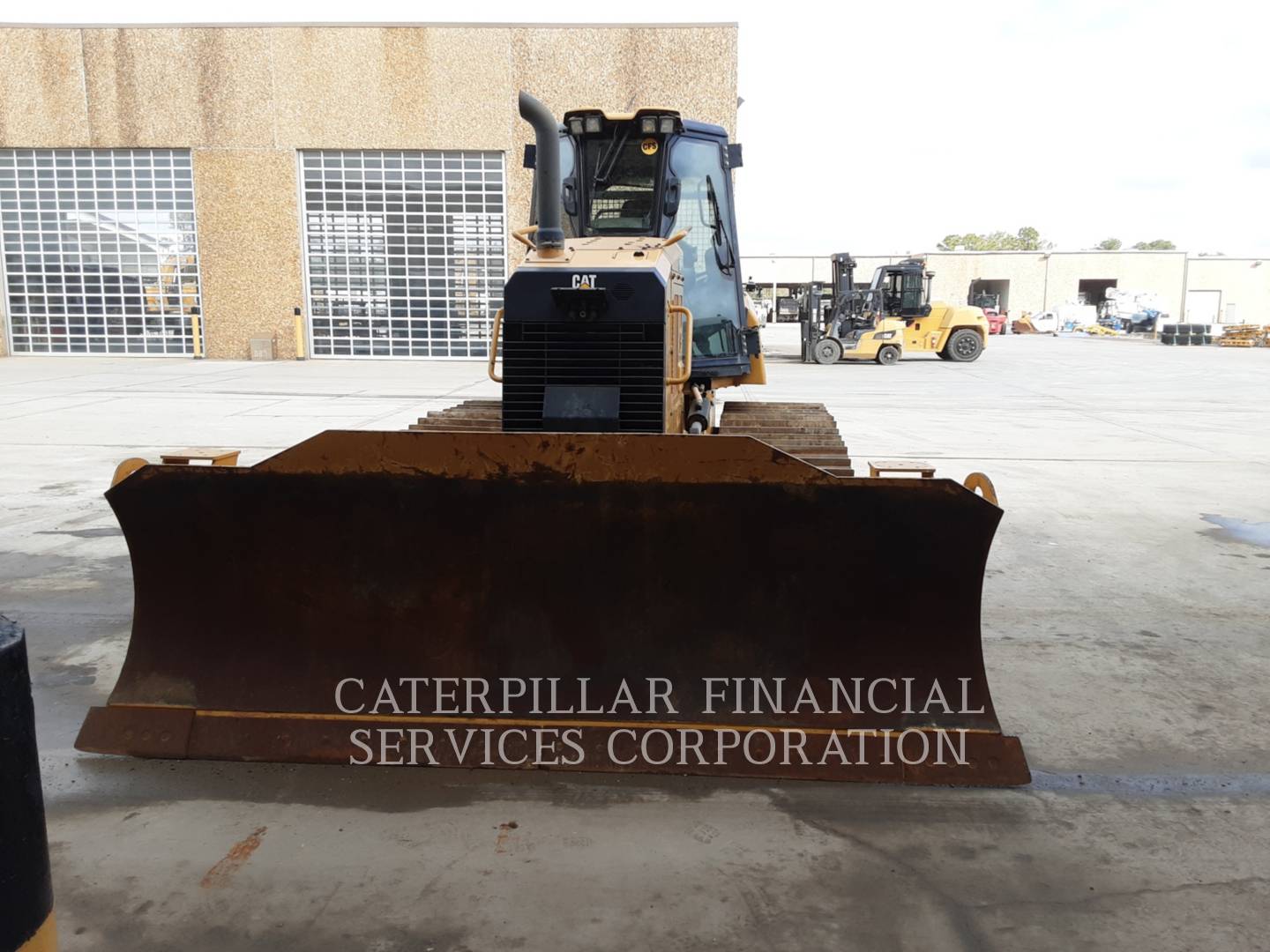

Blade

Cutting Edge & Bits

Fair

Face / Moldboard

Good

Knuckle

Fair

Spill Rack

Good

Tower

Good

Undercarriage

Track Frame - Left

Good

Track Frame - Right

Fair

Carrier Rollers Front

Left: 157 mm Measurement, Left: 37% Worn, Right: 157 mm Measurement, Right: 37% Worn

Carrier Rollers Rear

Left: 157 mm Measurement, Left: 37% Worn, Right: 158 mm Measurement, Right: 35% Worn

Idlers Front

Left: 40 mm Measurement, Left: 44% Worn, Right: 40 mm Measurement, Right: 44% Worn

Links

Left: 102 mm Measurement, Left: 65% Worn, Right: 101 mm Measurement, Right: 75% Worn

Pins & Bushings (External)

Left: 53 mm Measurement, Left: 80% Worn, Right: 53 mm Measurement, Right: 80% Worn

Segments

Left: 50% Worn, Right: 50% Worn

Track Roller 1

Left: 23 mm Measurement, Left: 46% Worn, Right: 23 mm Measurement, Right: 46% Worn

Track Roller 2

Left: 22 mm Measurement, Left: 40% Worn, Right: 21 mm Measurement, Right: 32% Worn

Track Roller 3

Left: 22 mm Measurement, Left: 40% Worn, Right: 22 mm Measurement, Right: 40% Worn

Track Roller 4

Left: Guard Measurement, Right: Guard Measurement

Track Roller 5

Left: 21 mm Measurement, Left: 32% Worn, Right: 22 mm Measurement, Right: 40% Worn

Track Roller 6

Left: 21 mm Measurement, Left: 32% Worn, Right: 22 mm Measurement, Right: 40% Worn

Track Roller 7

Left: 22 mm Measurement, Left: 40% Worn, Right: 22 mm Measurement, Right: 40% Worn

Track Roller 8

Left: Guard Measurement, Right: Guard Measurement

Final Drives

Housings, Left

Good

Housings, Right

Good

Planetaries / Differential, Left

Good

Planetaries / Differential, Right

Good
