General Appearance

Cleaning Required

Yes

Extra Fuel Tanks

No

S.O.S. Taken

No

Bumper

Fair

Car Body

Fair

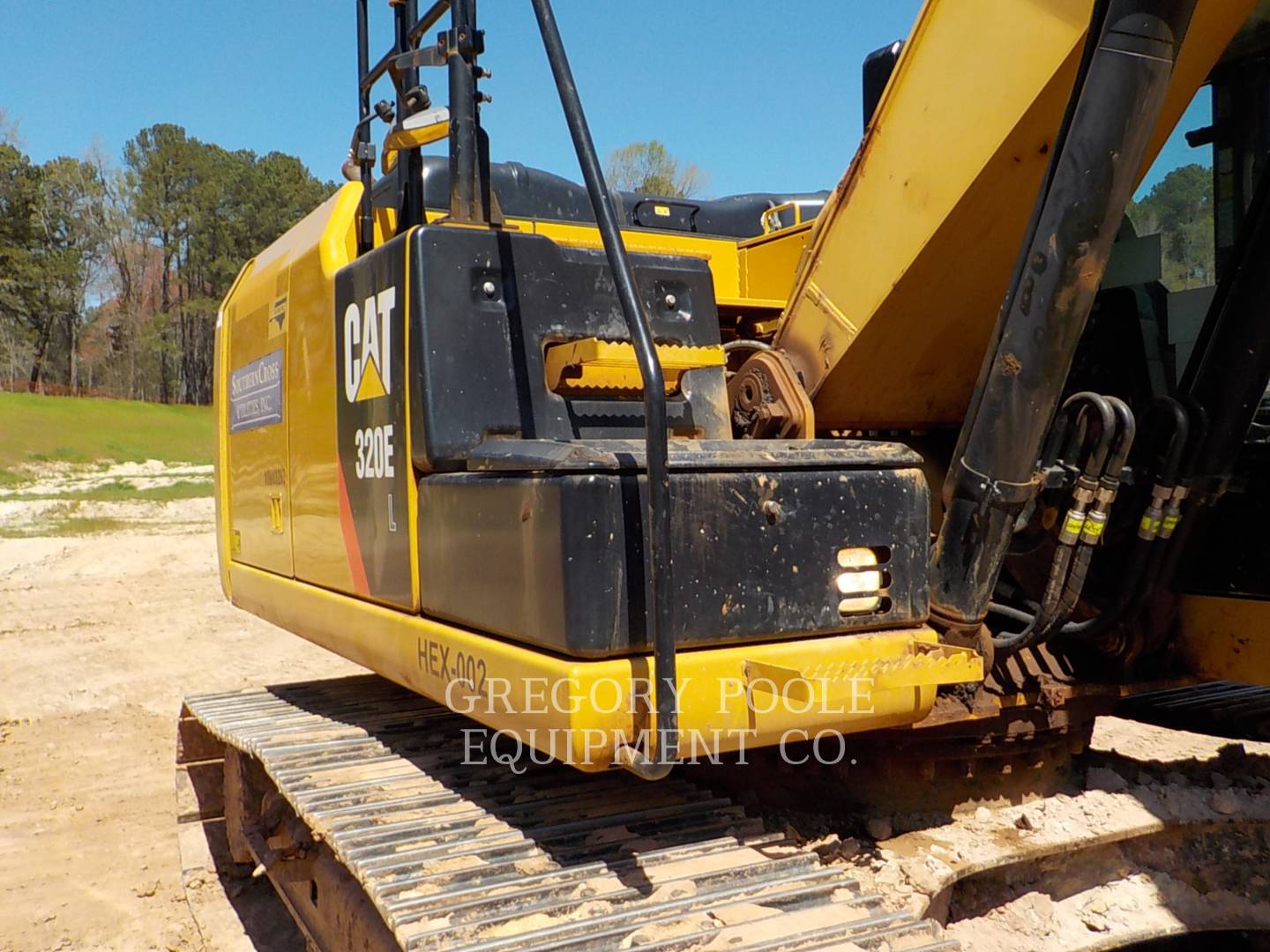

Counterweight

Good

Crankcase Guard / Battery Box

Fair

Draw Bar

Good

Eng. Enclose Hood / Stack

Fair

Engine Doors

Fair

Fuel Tank

Good

Grab Irons

Fair

Hood

Good

Main Frame Welds

Good

Paint

Fair

Radiator Grill & Shroud

Good

Sheet Metal

Fair

Steps / Ladder

Fair

Safety Items

Brake Hold

Good

Horn

Good

Swing Brake

Good

Gauges, Operator Station, Console

Back Up Alarm

Yes

Air Conditioner

Good

Dash Console

Good

Door Latches

Good

EMS Panel / Warnings

Good

Floor Boards

Fair

Gauges

Good

Glass/Mirrors

Good

Heater

Good

Interior Lights

Good

Meter

Good

Product Link

Good

Seat Belt

Poor

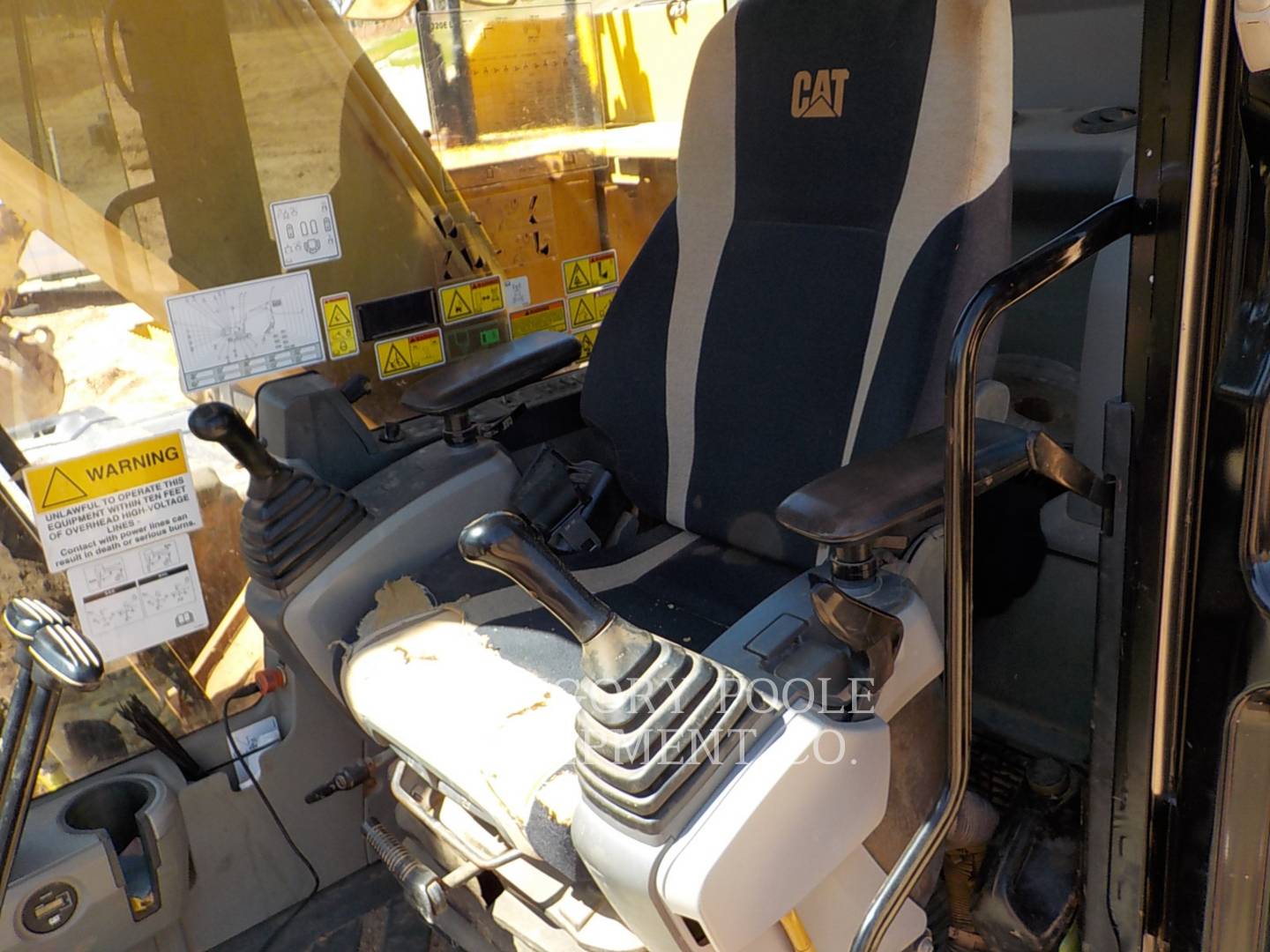

Seat Cushion / Arm Rest

Poor

Switches

Good

Windshield Wipers

Fair

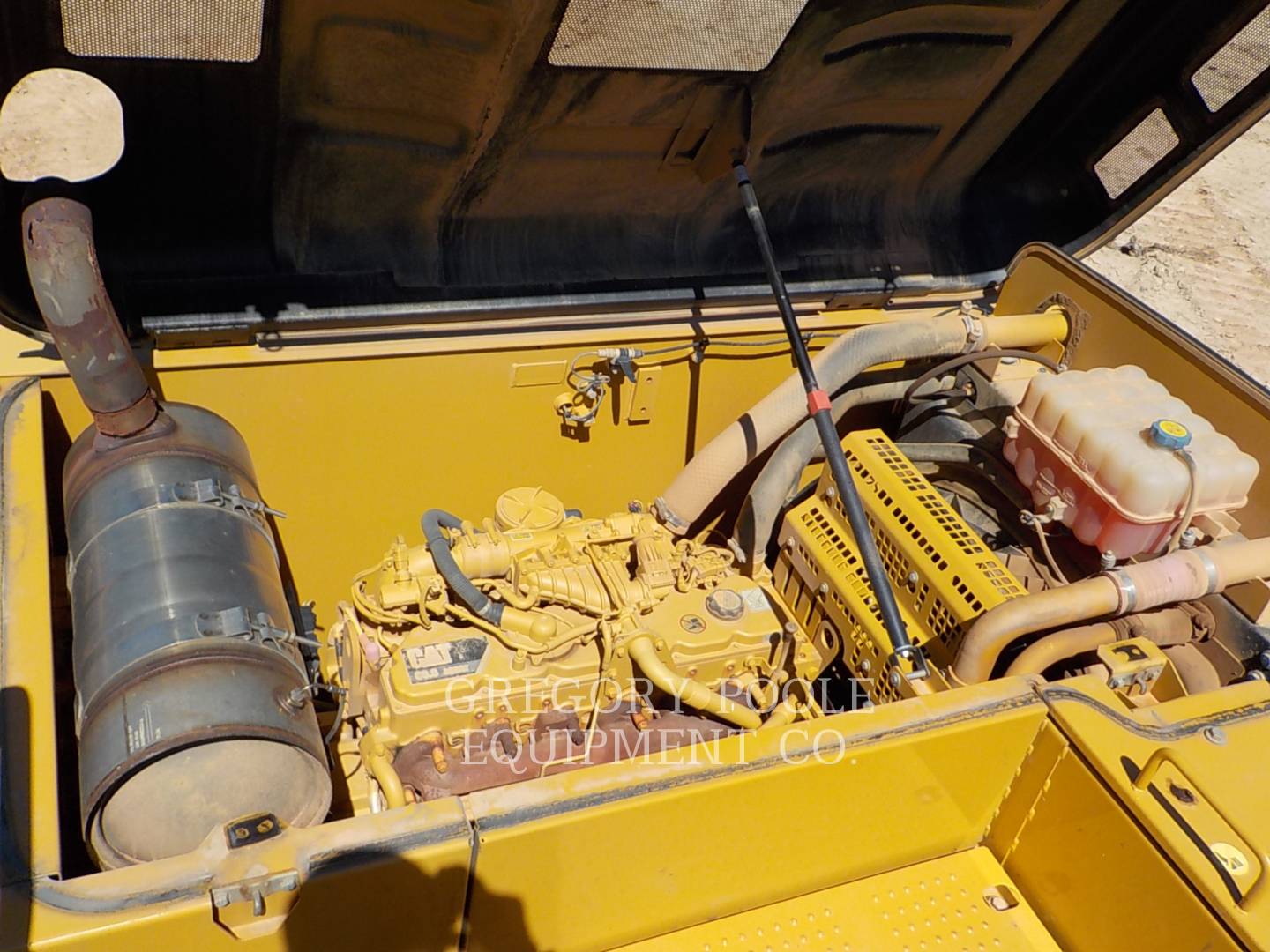

Engine

Blow By

No

Compression in Radiator

No

Knocking

No

Oil Leaks

No

Water in Oil

No

Belts / Pulleys

Good

Engine Supports

Good

Exhaust / Muffler

Good

Fuel Injection System

Good

Governor

Good

Operating Condition - ENGINE

Good

Turbocharger / Blower

Good

Cooling System

Leaks

No

Coolers

Good

Fan

Good

Fan Drive

Good

Hoses

Good

Radiator

Good

Water Pump

Good

Electrical, Starting And Charging System

Alternator

Good

Batteries / Cables

Good

Lighting

Good

Starter

Good

Wiring

Good

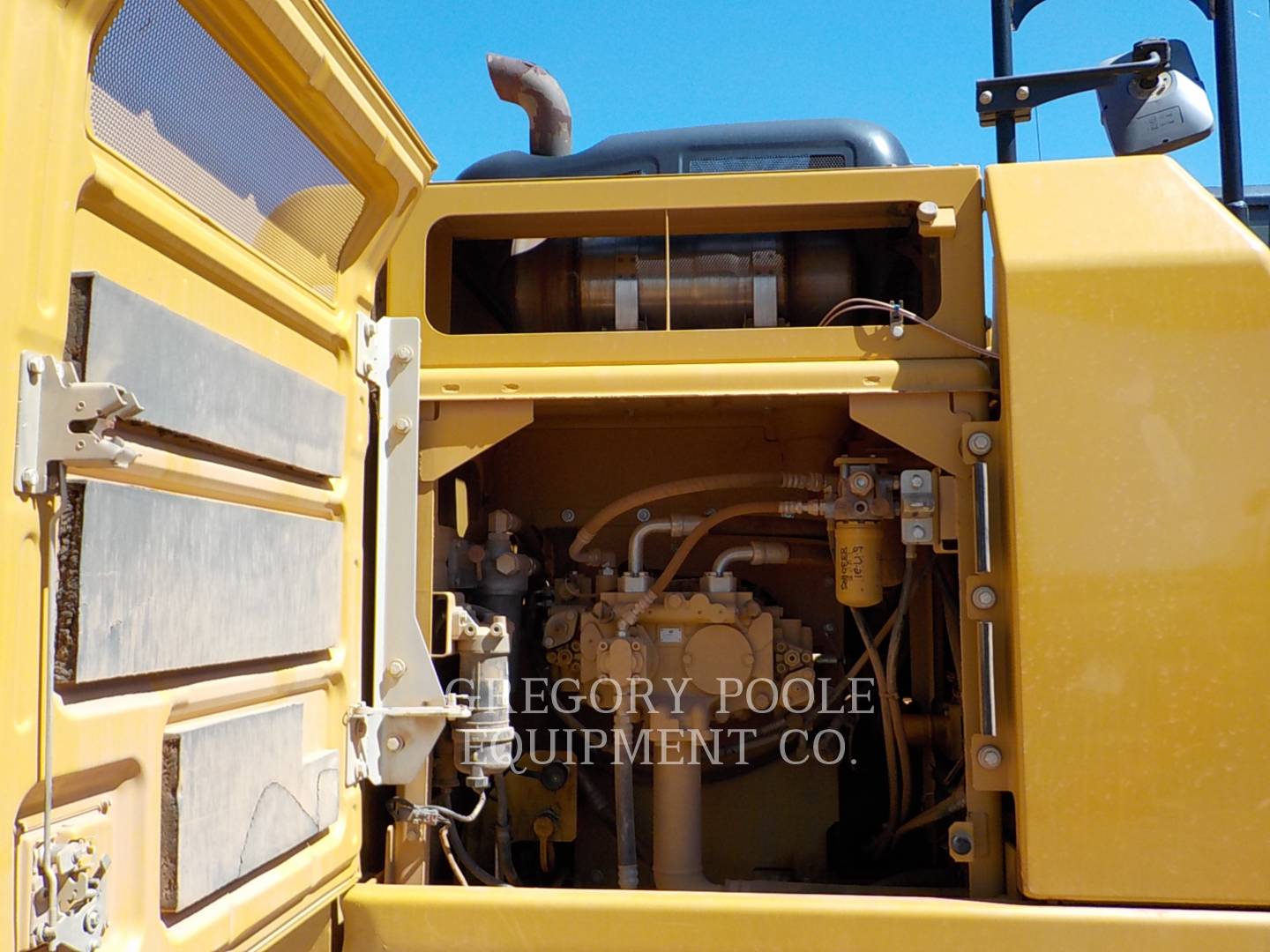

Hydraulics

Boom Cylinder

Good

Bucket Cylinder

Good

Control Linkage

Good

Hose Lines

Good

Hydraulic Swivel

Good

Operating Condition - HYDRAULICS

Good

Pump Drive

Good

Pumps & Valves

Good

Stick Cylinder

Good

Swing Gear

Good

Swing Motors

Fair

Tank

Good

Travel Motors

Good

Boom

Boom Condition

Good

Boom Pins

Good

Pins & Bushings - BOOM

Good

Stick

Pins & Bushings - STICK

Good

Stick Conditions

Good

Stick Pins

Good

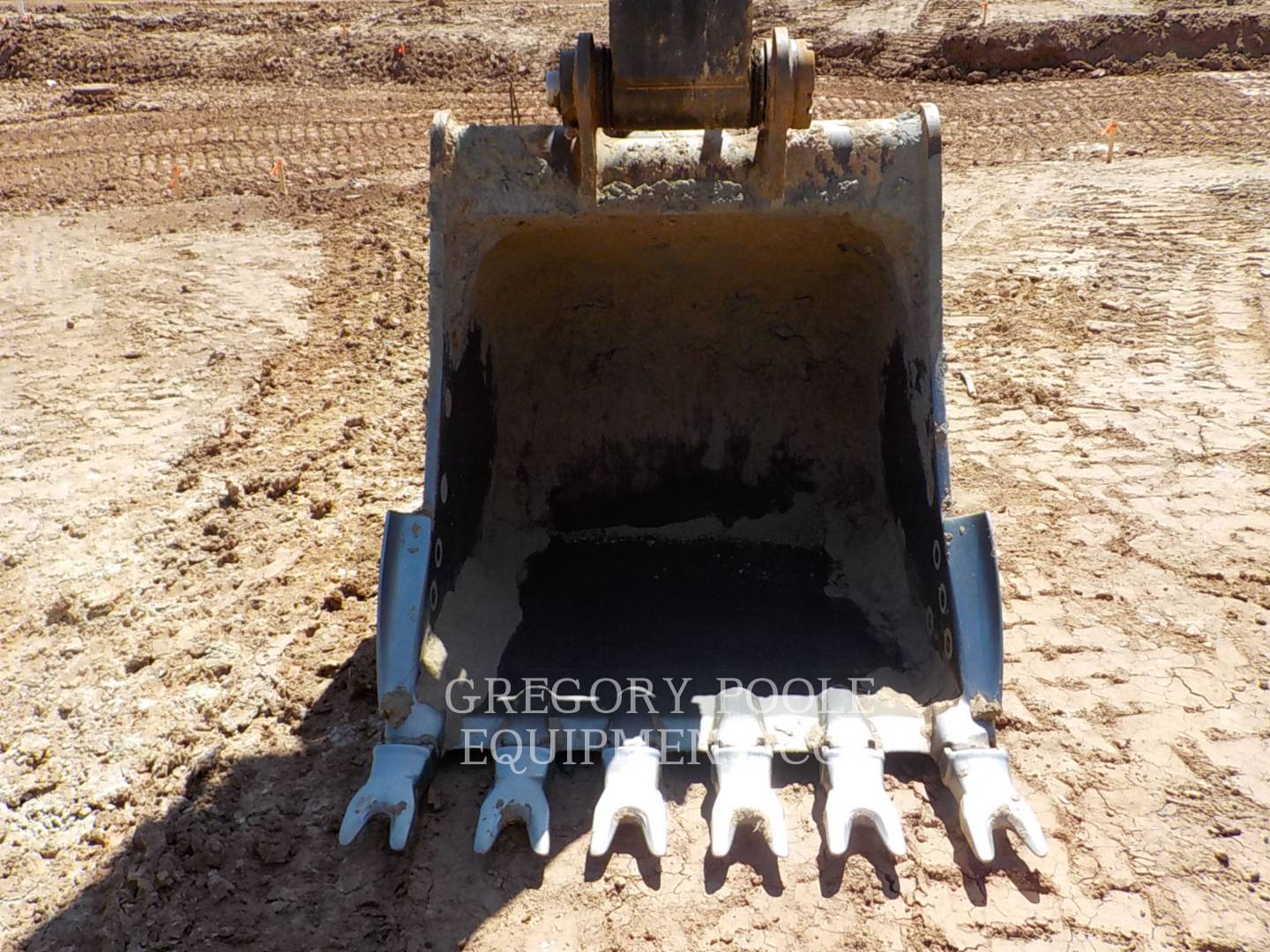

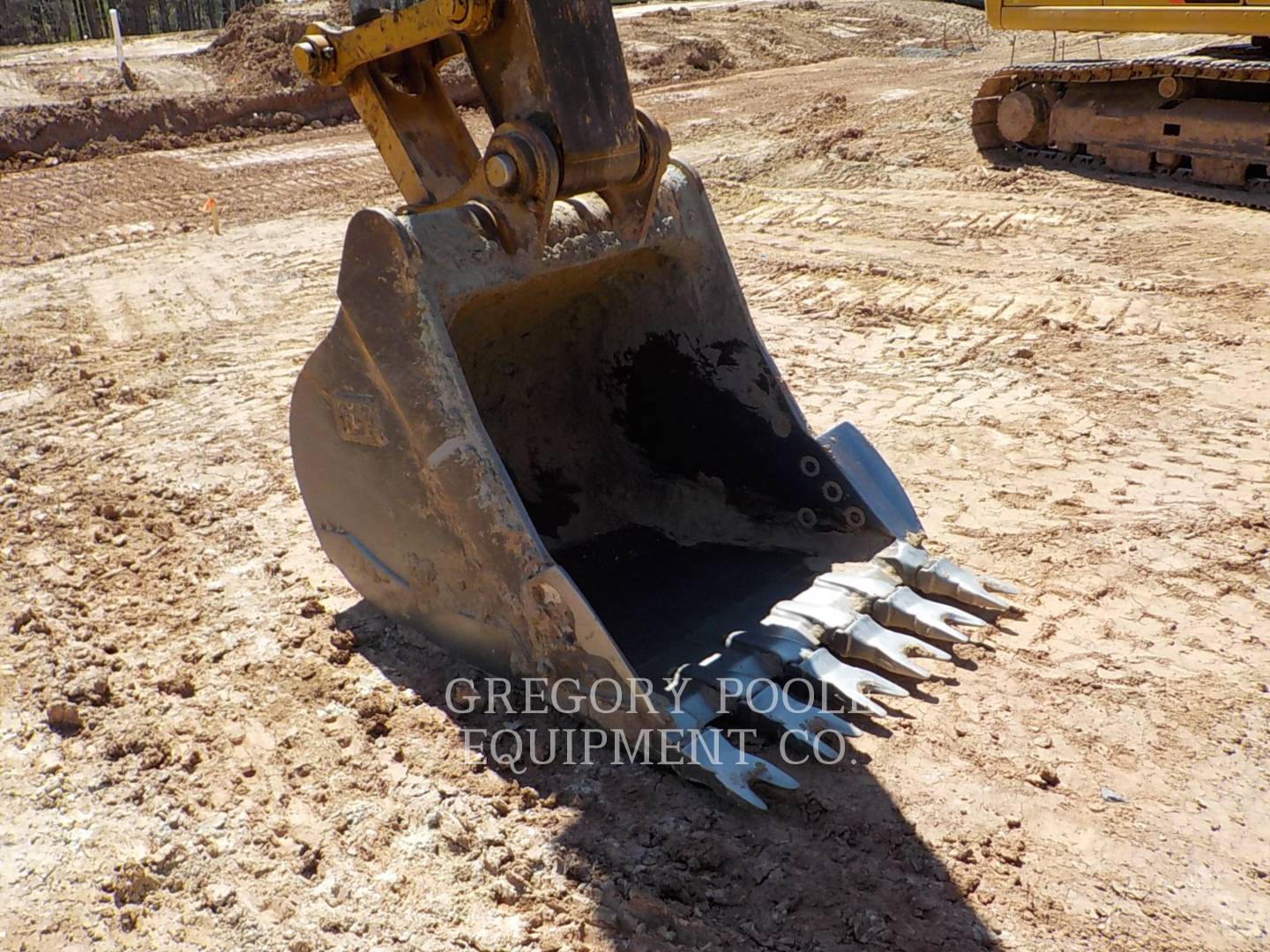

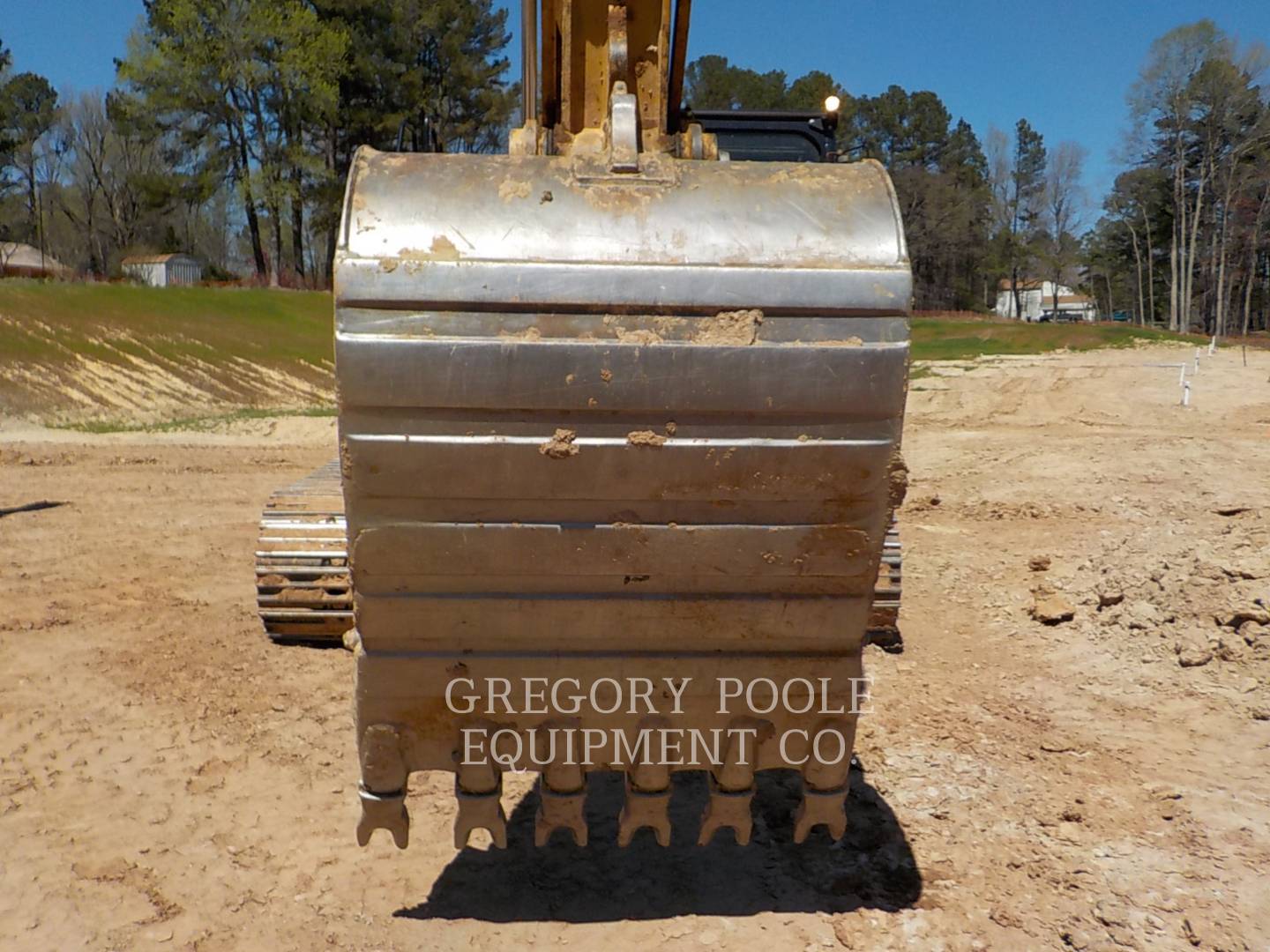

Bucket

Quick Coupler

No

Bucket Bottom

Fair

Bucket Linkage

Good

Bucket Mounts

Good

Bucket Sides

Good

Teeth / Adapters

Good

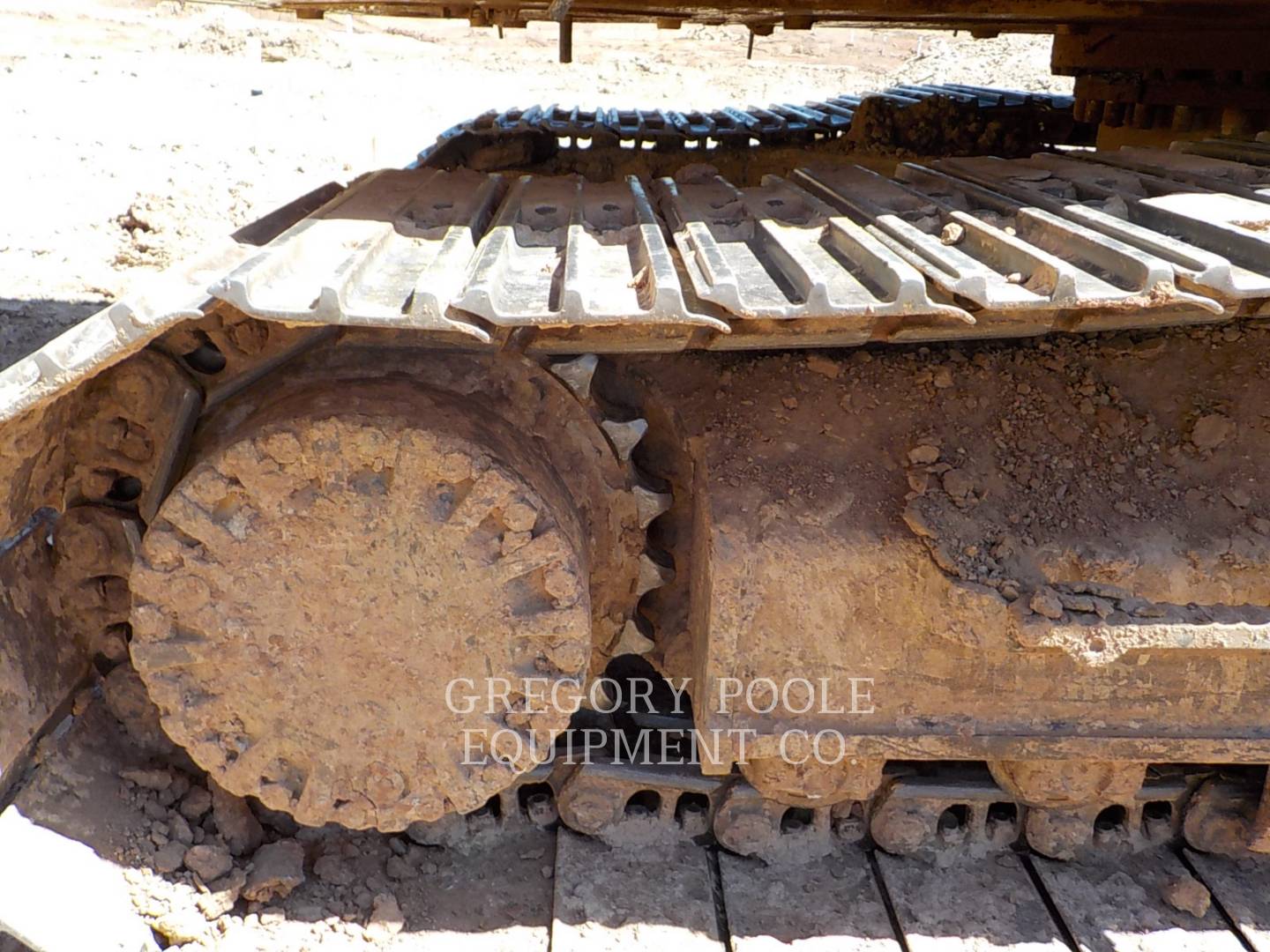

Undercarriage

Pins & Bushings Turned?

No

Track Frame - Left

Good

Track Frame - Right

Good

Carrier Rollers Front

Left: 119 mm Measurement, Left: 6% Worn, Right: 119 mm Measurement, Right: 6% Worn

Carrier Rollers Rear

Left: 119 mm Measurement, Left: 6% Worn, Right: 119 mm Measurement, Right: 6% Worn

Idlers Front

Left: 20 mm Measurement, Left: 1% Worn, Right: 20 mm Measurement, Right: 1% Worn

Links

Left: 105.5 mm Measurement, Left: 9% Worn, Right: 105.5 mm Measurement, Right: 9% Worn

Pins & Bushings (External)

Left: 59 mm Measurement, Left: 10% Worn, Right: 59 mm Measurement, Right: 10% Worn

Pins & Bushings (Internal)

Left: 762 mm Measurement, Left: 10% Worn, Right: 762 mm Measurement

Segments

Left: 10% Worn, Right: 10% Worn

Track Roller 1

Left: 22 mm Measurement, Left: 63% Worn, Right: 22 mm Measurement, Right: 63% Worn

Track Roller 2

Left: 21 mm Measurement, Left: 49% Worn, Right: 21 mm Measurement, Right: 49% Worn

Track Roller 4

Left: 21 mm Measurement, Left: 49% Worn, Right: 21 mm Measurement, Right: 49% Worn

Track Roller 5

Left: 21 mm Measurement, Left: 49% Worn, Right: 21 mm Measurement, Right: 49% Worn

Track Roller 7

Left: 21 mm Measurement, Left: 49% Worn, Right: 21 mm Measurement, Right: 49% Worn

Track Roller 8

Left: 22 mm Measurement, Left: 63% Worn, Right: 22 mm Measurement, Right: 63% Worn

Track Shoes (Width)

Left: 22 mm Measurement, Left: 18% Worn, Right: 22 mm Measurement, Right: 18% Worn

Final Drives

Housings

Good

Planetaries / Diff

Good
