General Appearance

Cleaning Required

Yes

S.O.S. Taken

No

Cab or Canopy

Good

Decals

Fair

Fuel Tank

Fair

Grab Irons

Fair

Hood

Good

Main Frame Welds

Good

Paint

Fair

Pre-Cleaner Bowl

Fair

Sheet Metal

Fair

Safety Items

ROPS

Yes

Back Up Alarm

Poor

Horn

Poor

Parking Brake - SAFETY ITEMS

Good

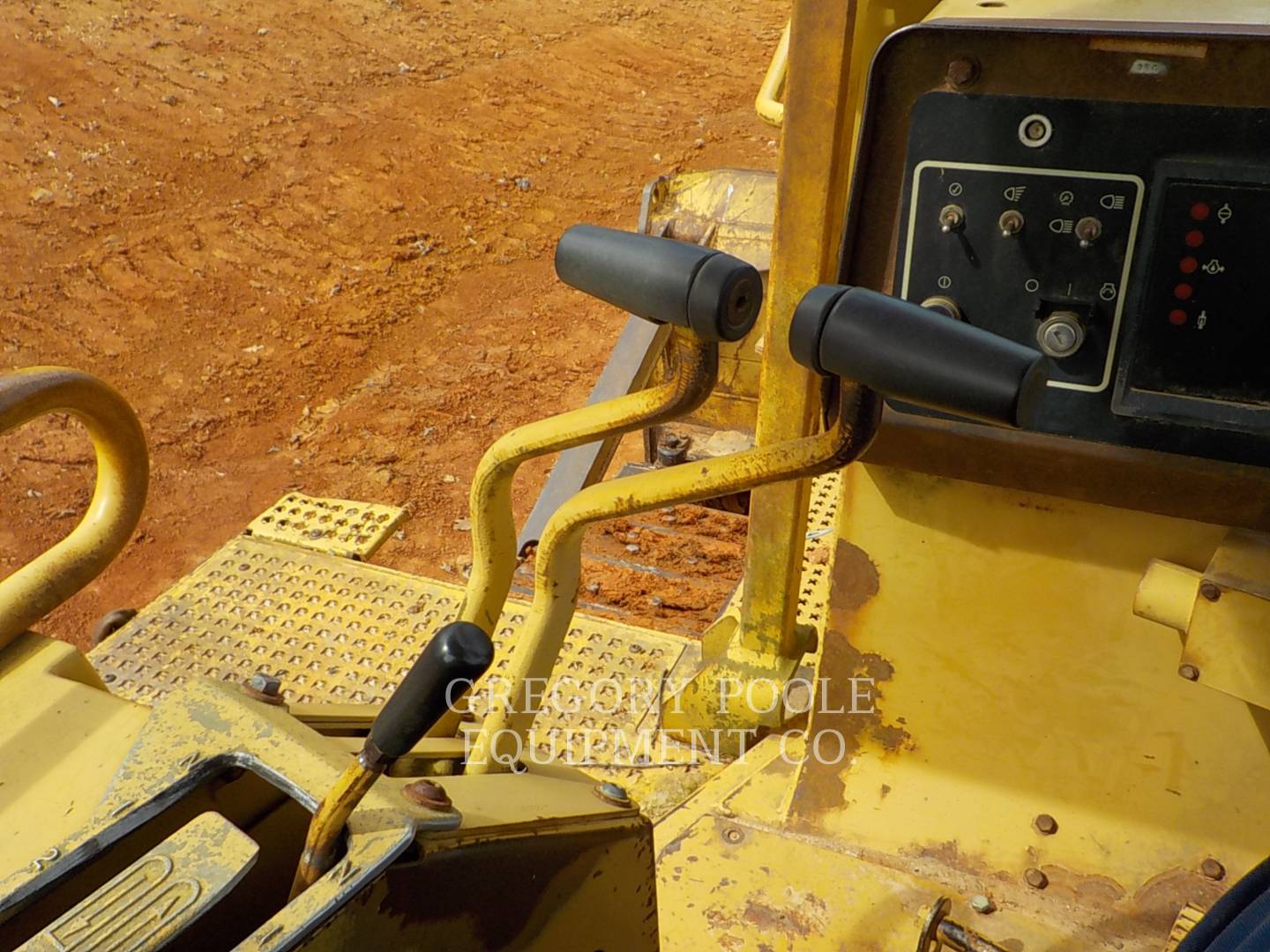

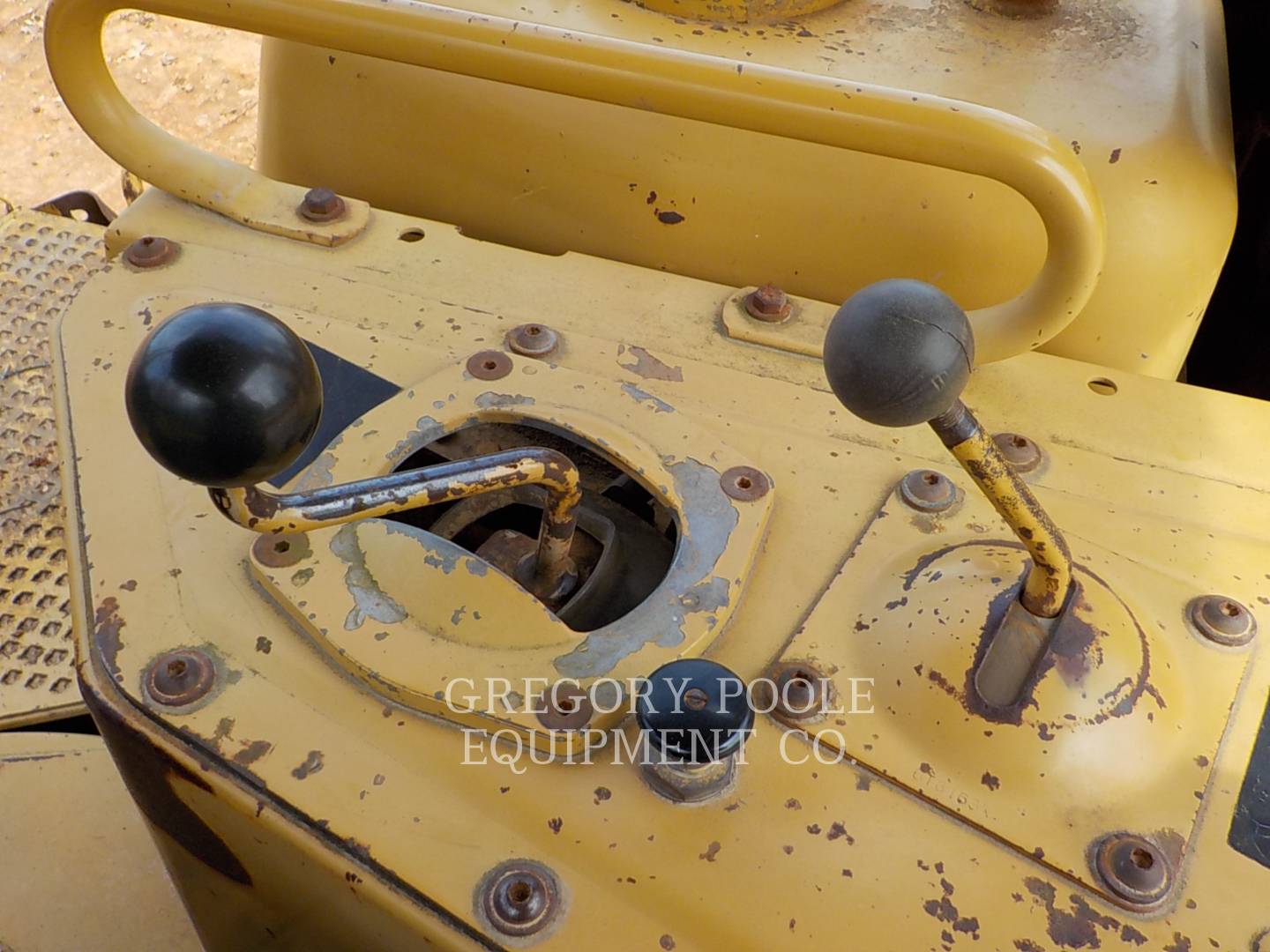

Gauges, Operator Station, Console

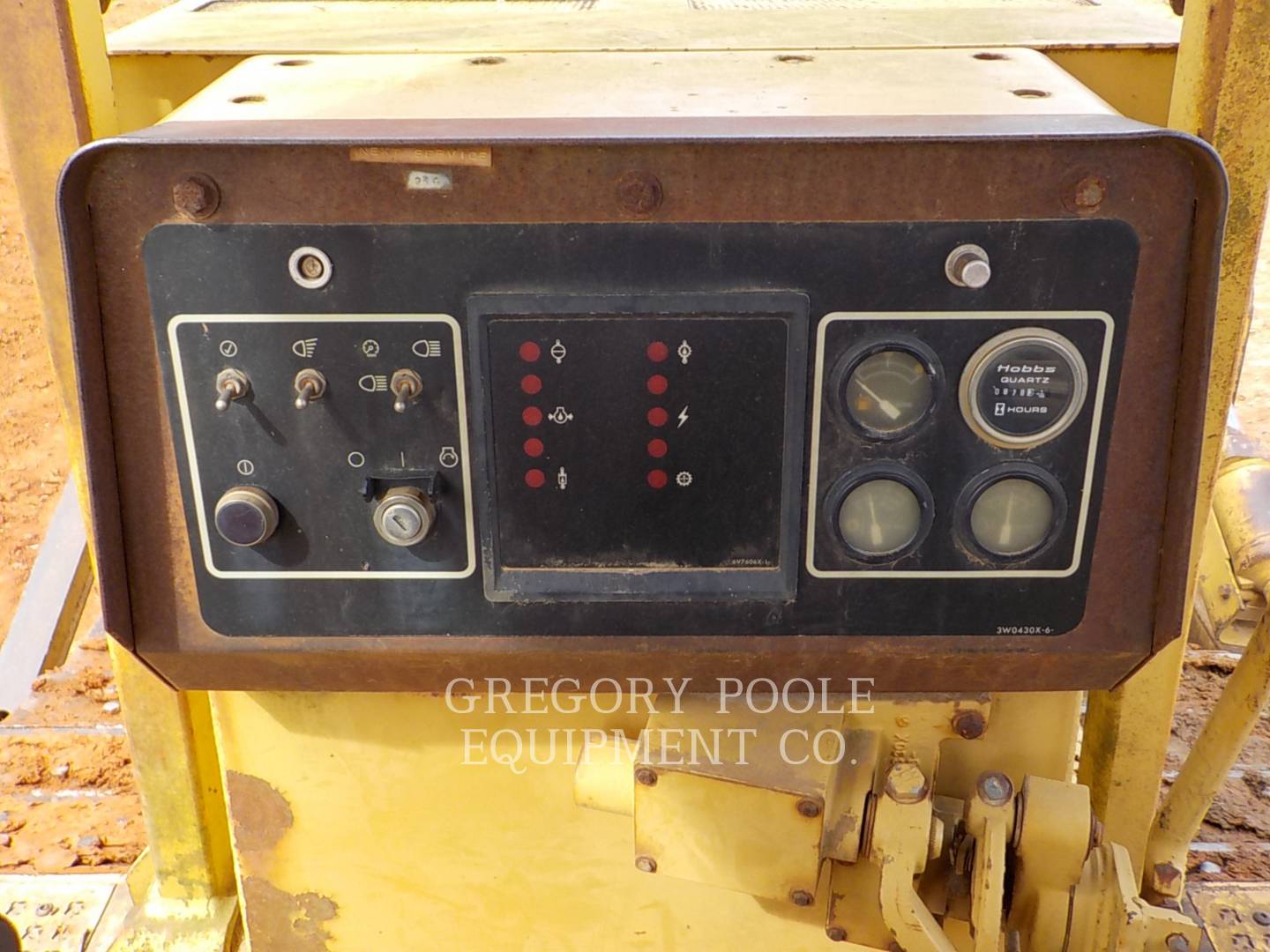

Dash Console

Fair

EMS Panel / Warnings

Fair

Gauges

Poor

Glass/Mirrors

Poor

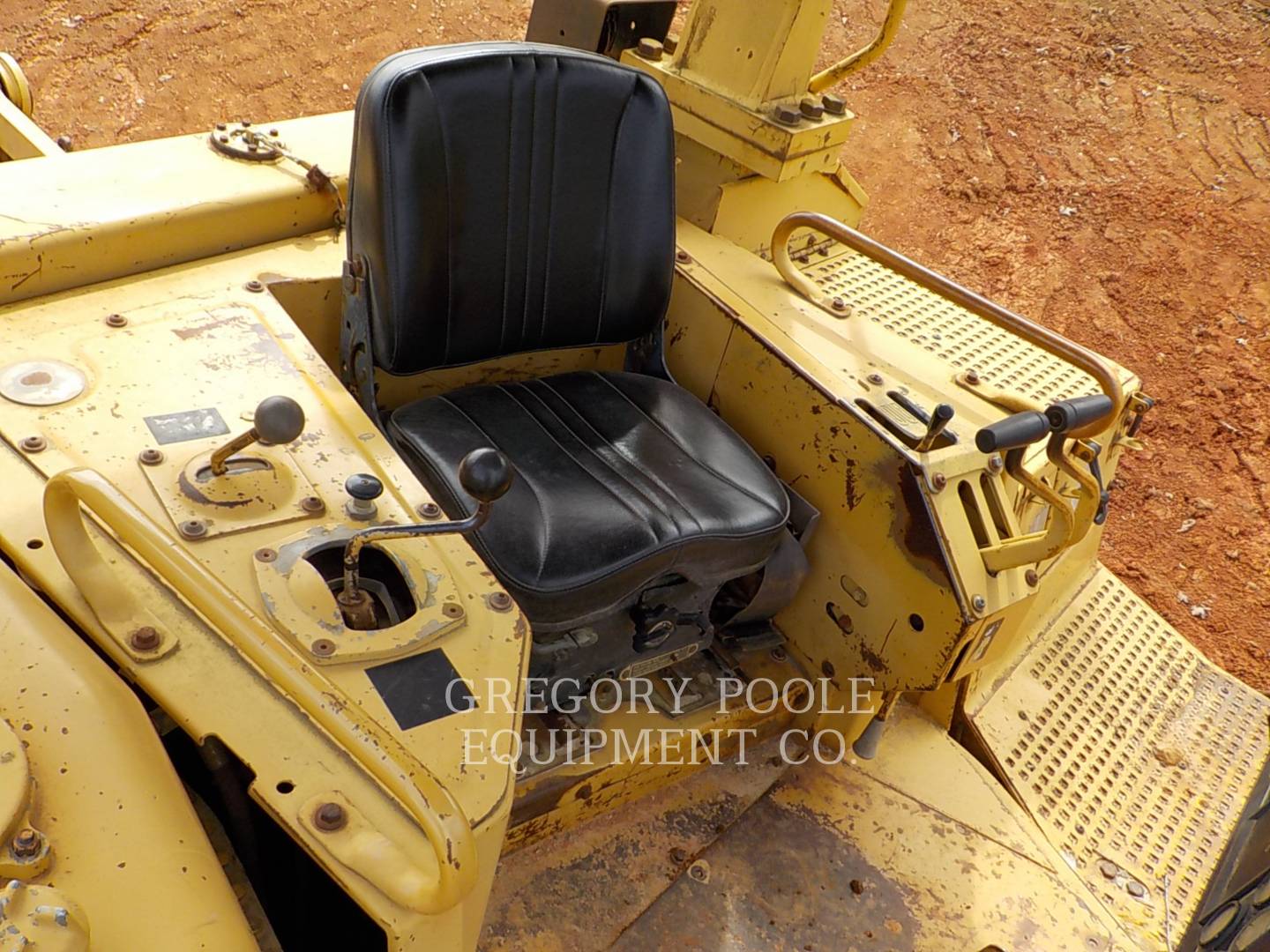

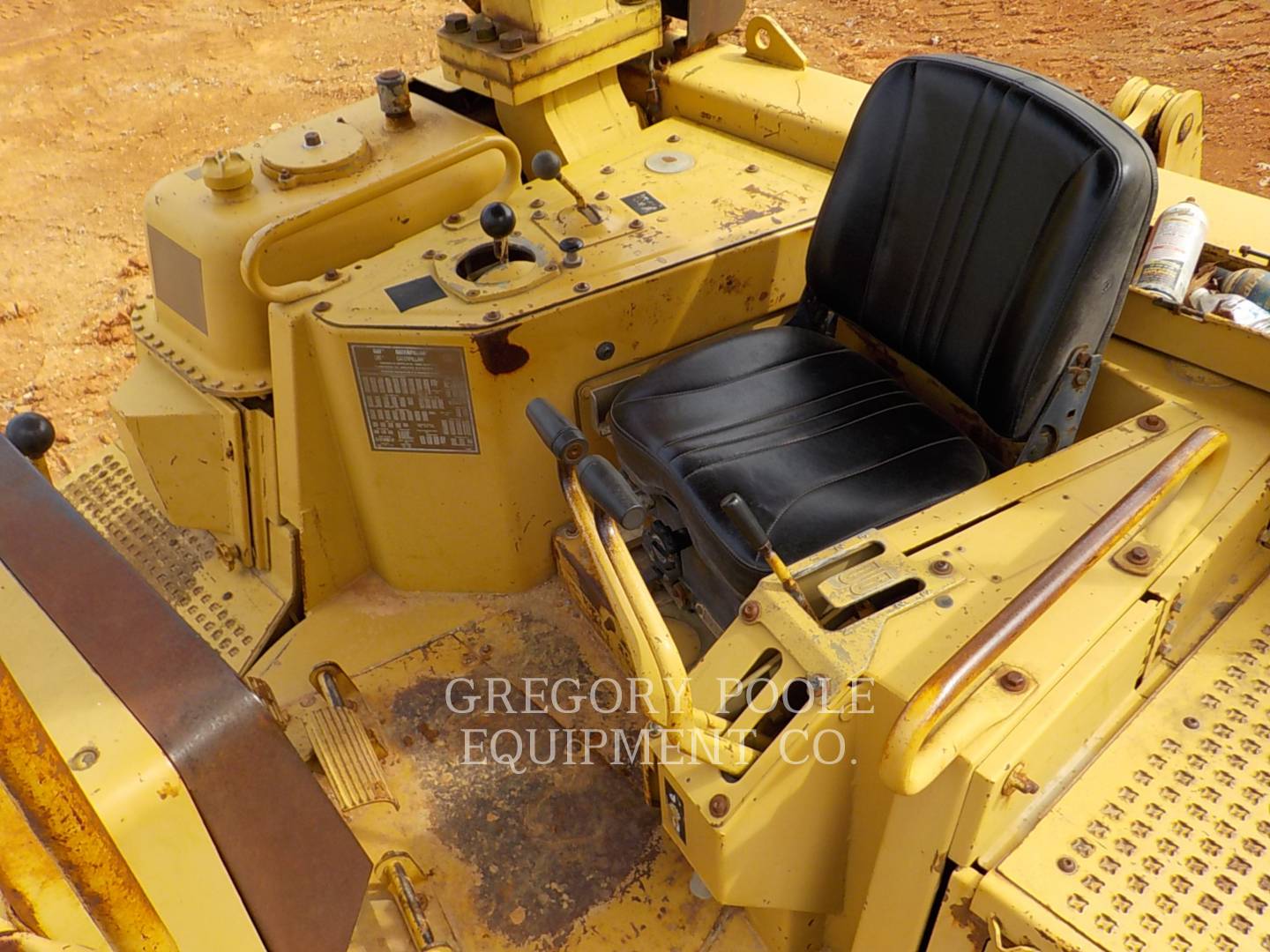

Seat Cushion / Arm Rest

Good

Switches

Fair

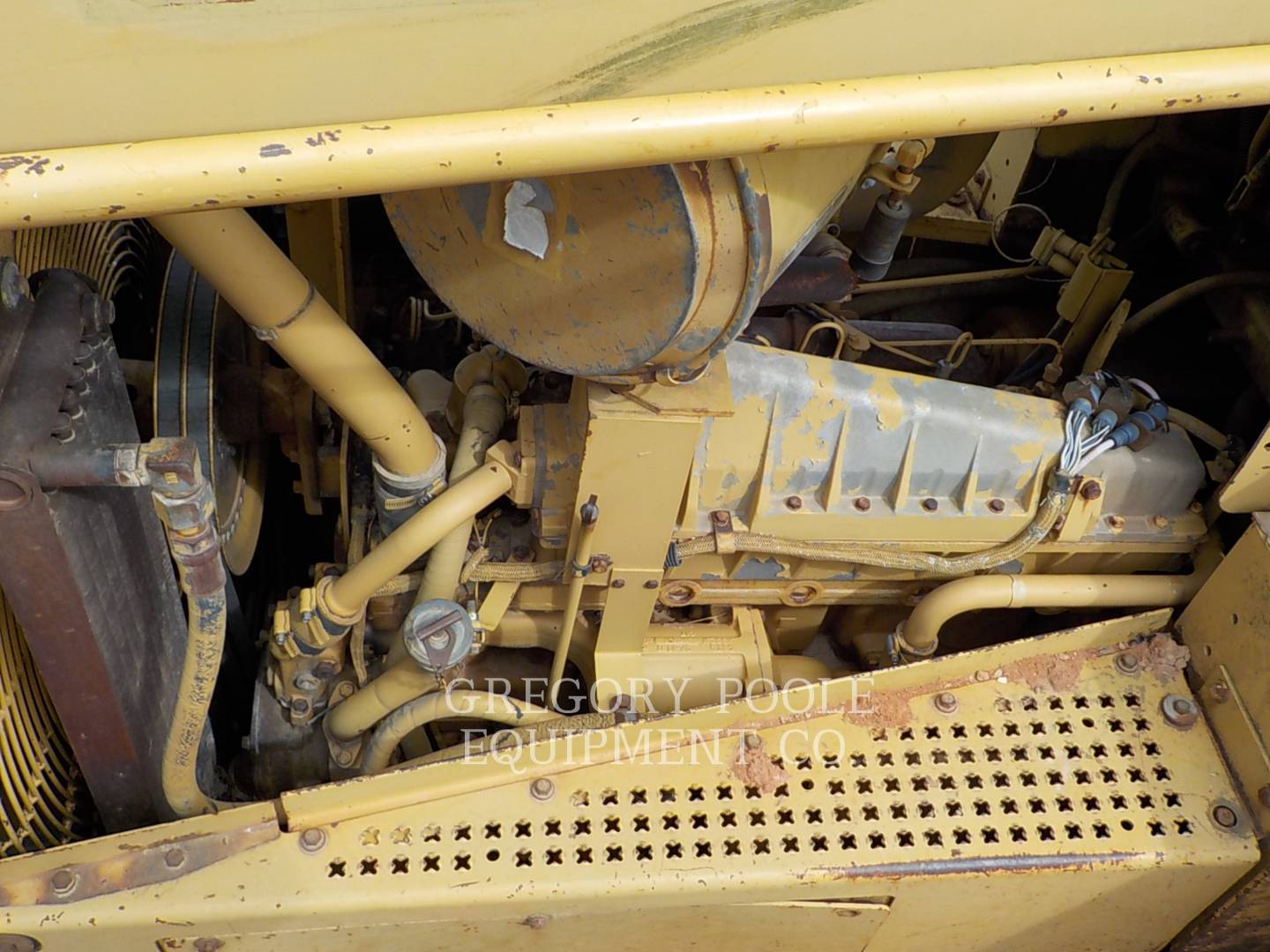

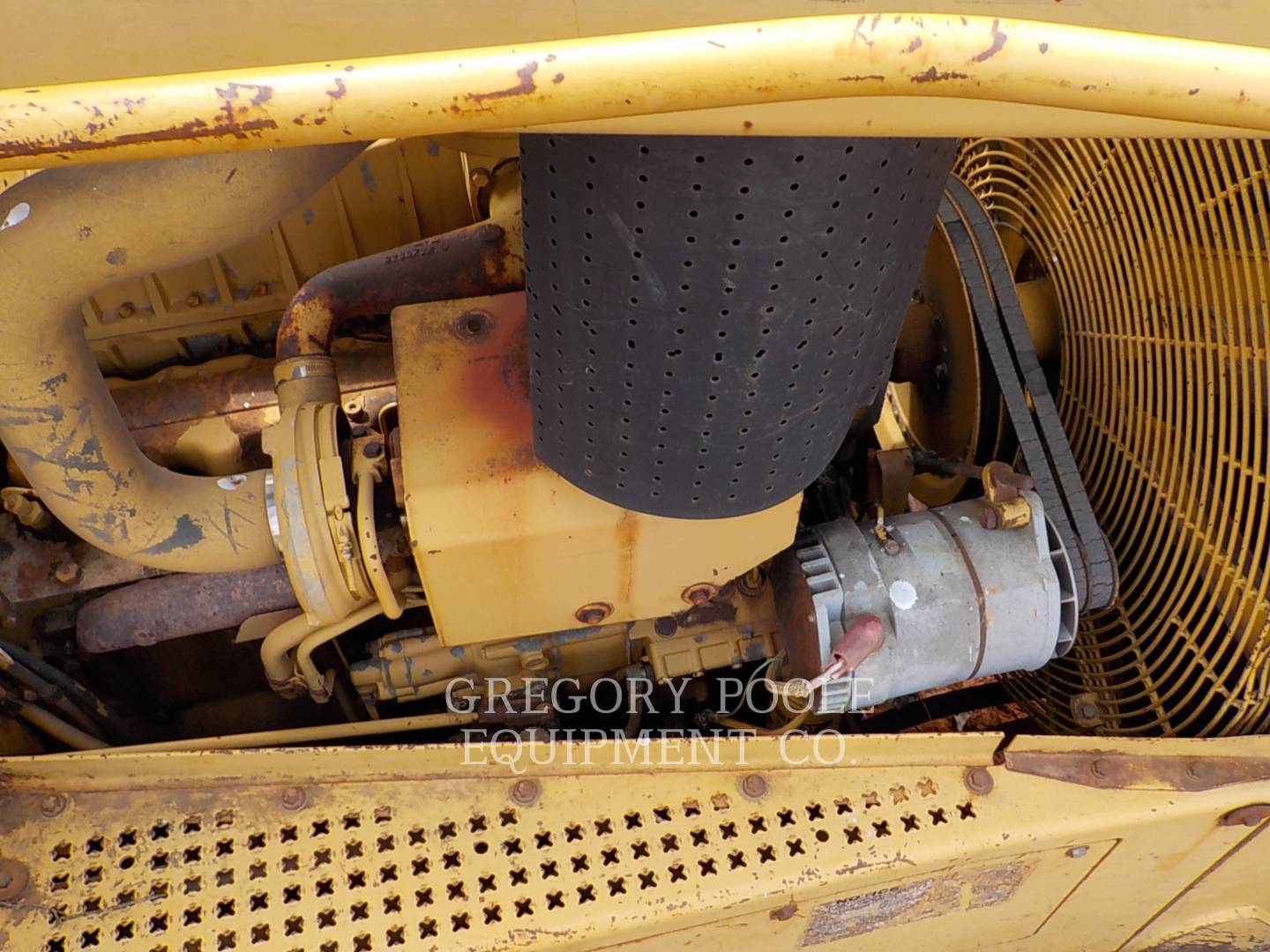

Engine

Compression in Radiator

No

Knocking

No

Oil Leaks

No

Water in Oil

No

Engine Supports

Good

Fuel Injection System

Good

Operating Condition - ENGINE

Good

Turbocharger / Blower

Good

Cooling System

Leaks - COOLING SYSTEM

No

Modular Radiator

Yes

Belts / Pulleys - COOLING SYSTEM

Fair

Coolers

Good

Fan

Good

Hoses

Fair

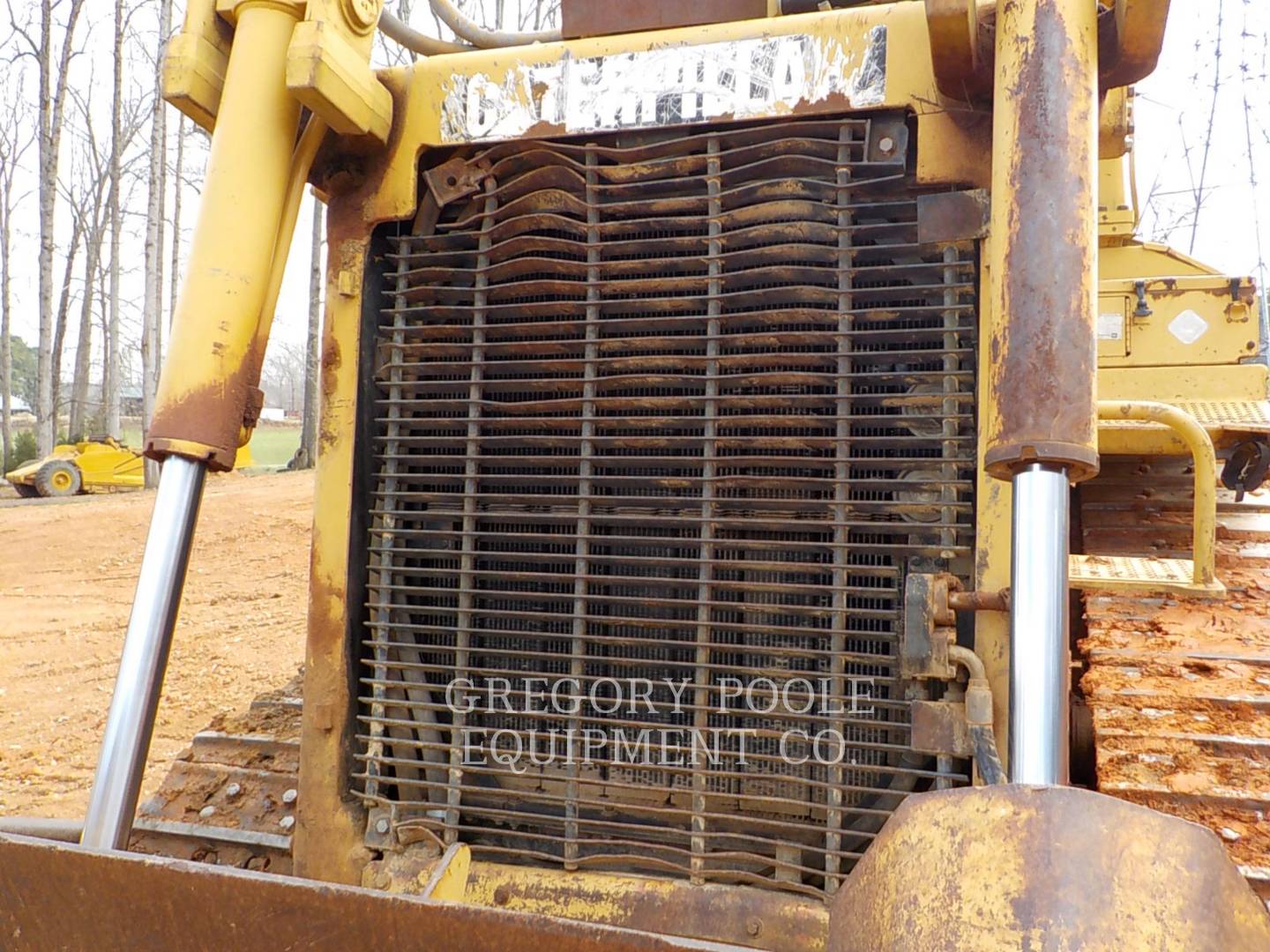

Radiator

Good

Water Pump

Good

Electrical, Starting And Charging System

Alternator

Fair

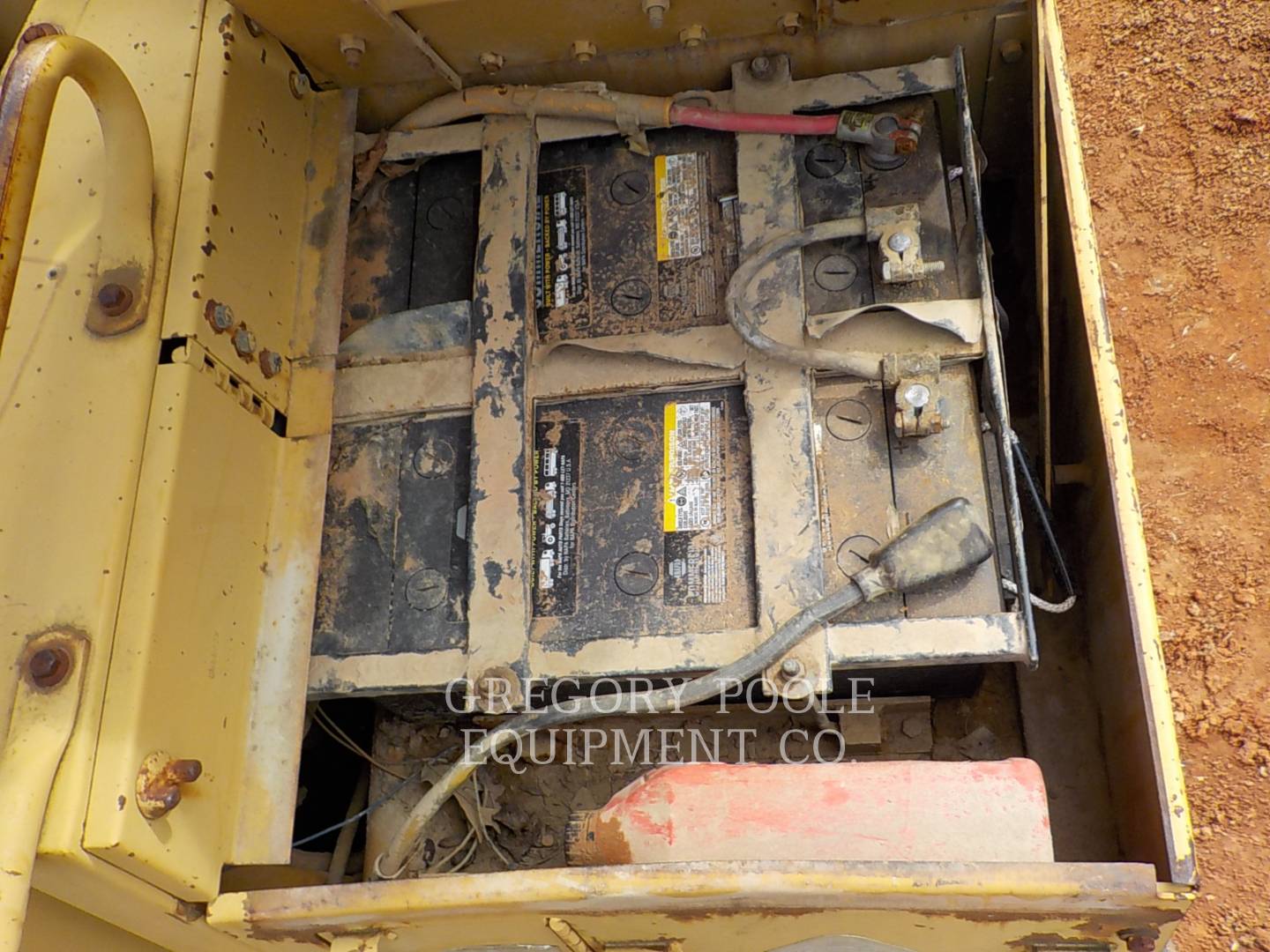

Batteries / Cables

Good

Starter

Good

Wiring

Good

Transmission

Leaks - TRANSMISSION

Yes

Transmission - Noisy

No

Case

Good

Controls - TRANSMISSION

Fair

Cooler

Good

Lines / Fittings - TRANSMISSION

Good

Operating Condition - TRANSMISSION

Good

Pump - TRANSMISSION

Good

Seals

Good

Temp / Pressure Gauges

Poor

Transmission - Forward Shifts

Good

Transmission - Reverse Shifts

Good

Steering

Steering Clutch

Good

Steering Linkage

Fair

Steering Operating Condition

Good

Hydraulics

Control Linkage - HYDRAULICS

Fair

Hose Lines

Fair

Lift Cylinders

Good

Overall Operating Condition

Good

Tilt Cylinder

Good

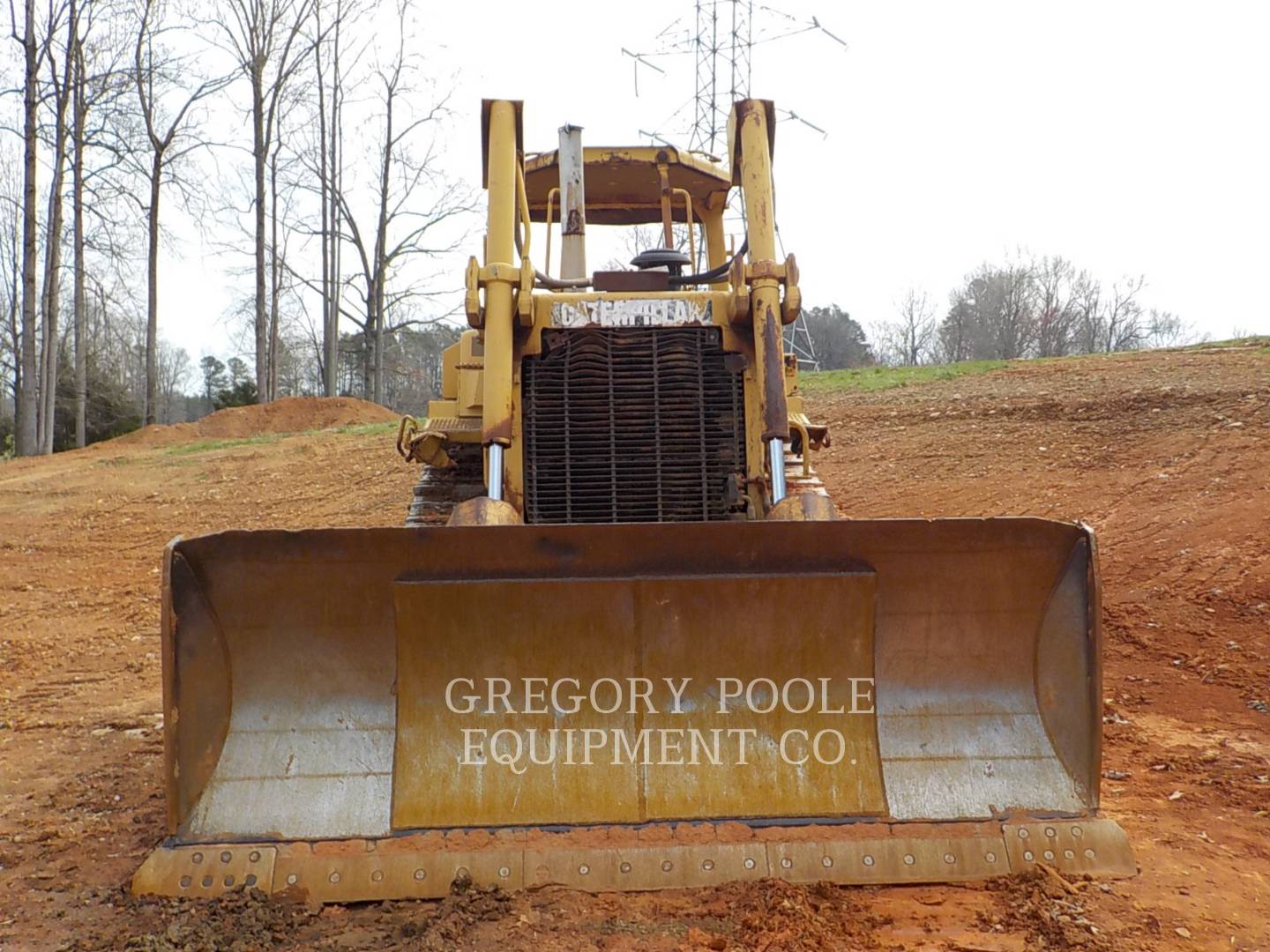

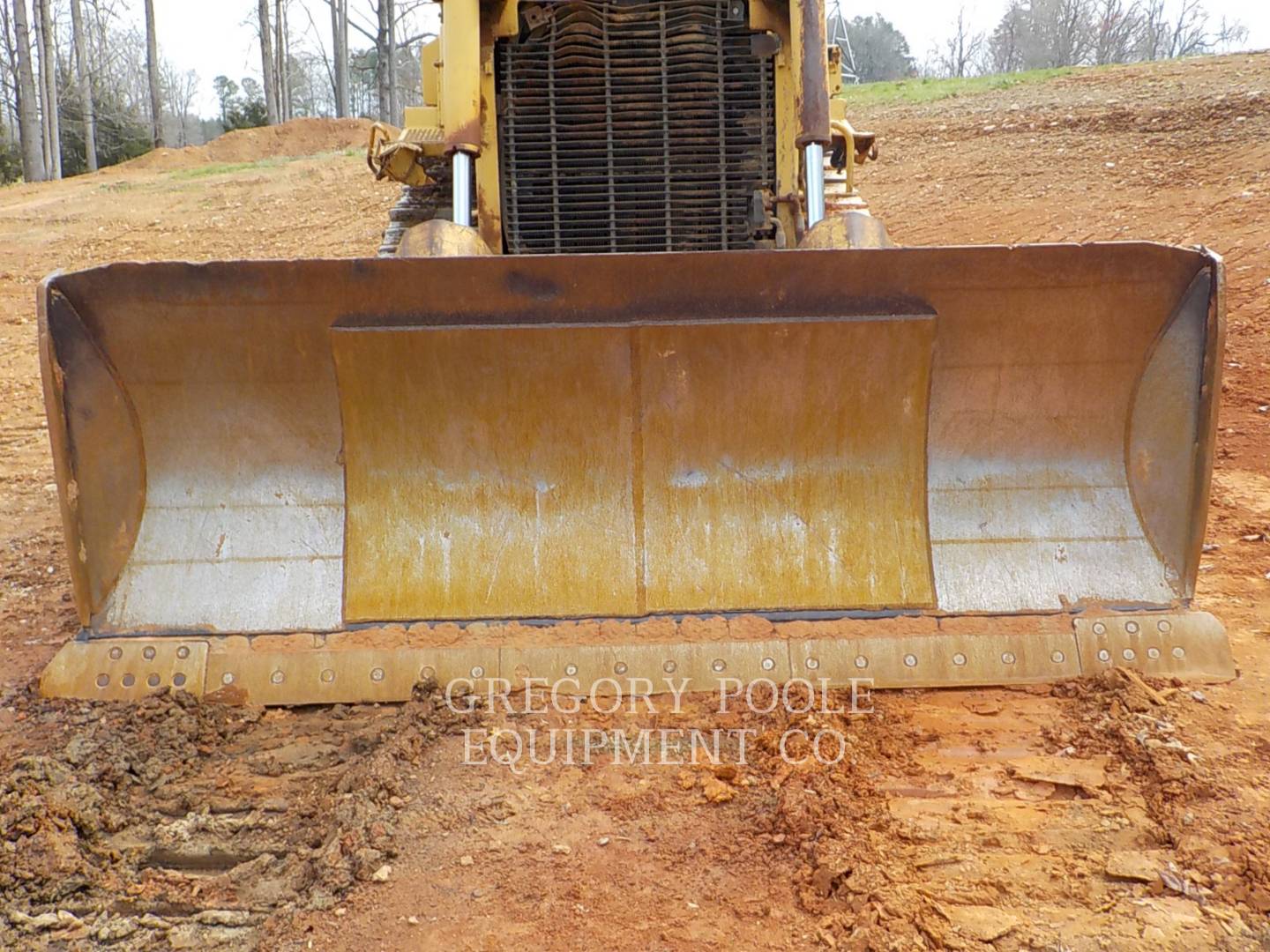

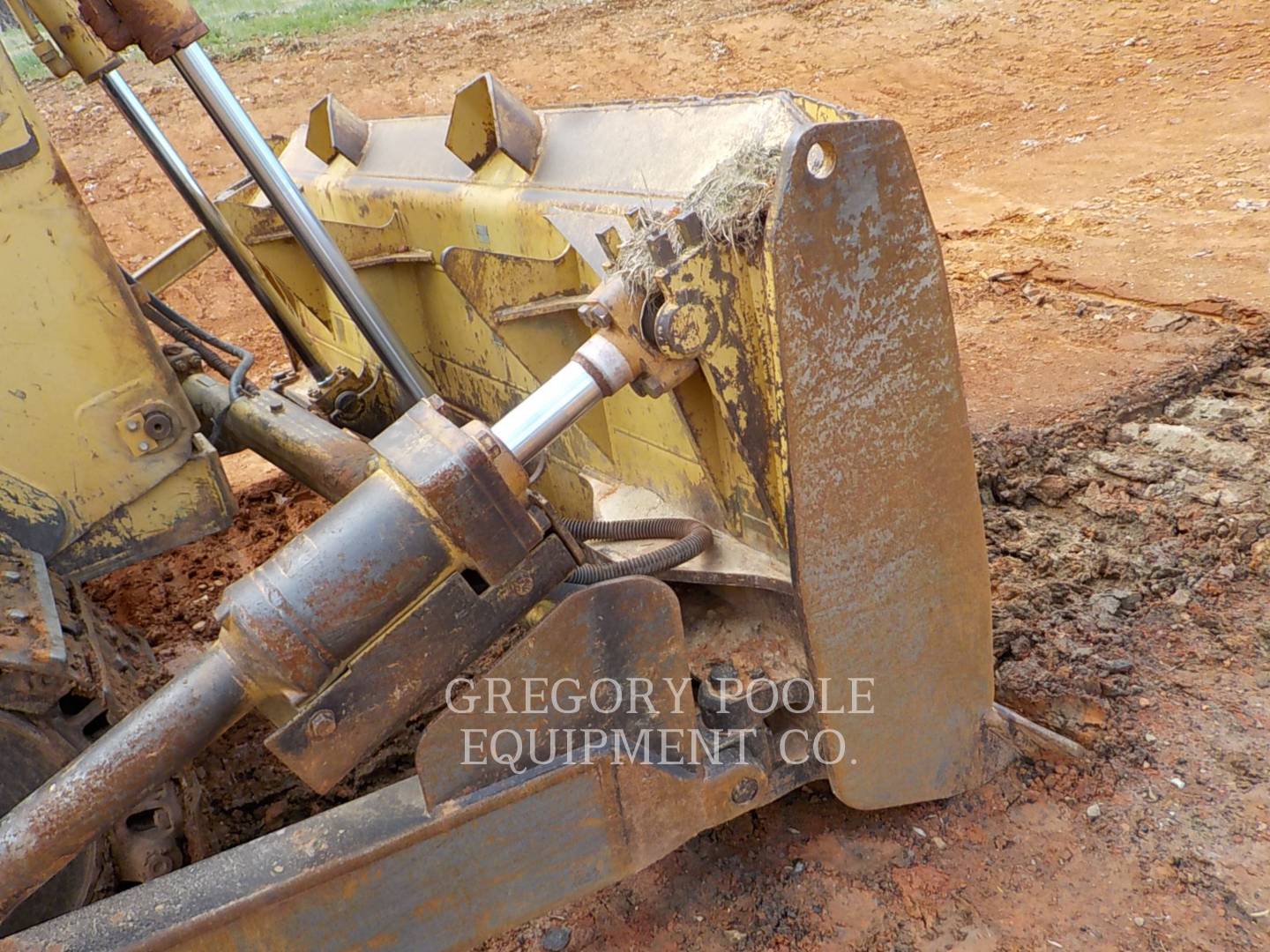

Blade

Cutting Edge & Bits

Fair

Face / Moldboard

Good

Pins

Fair

Push Arm

Good

Spill Rack

Good

Tilt Arms

Good

Trunnions

Fair

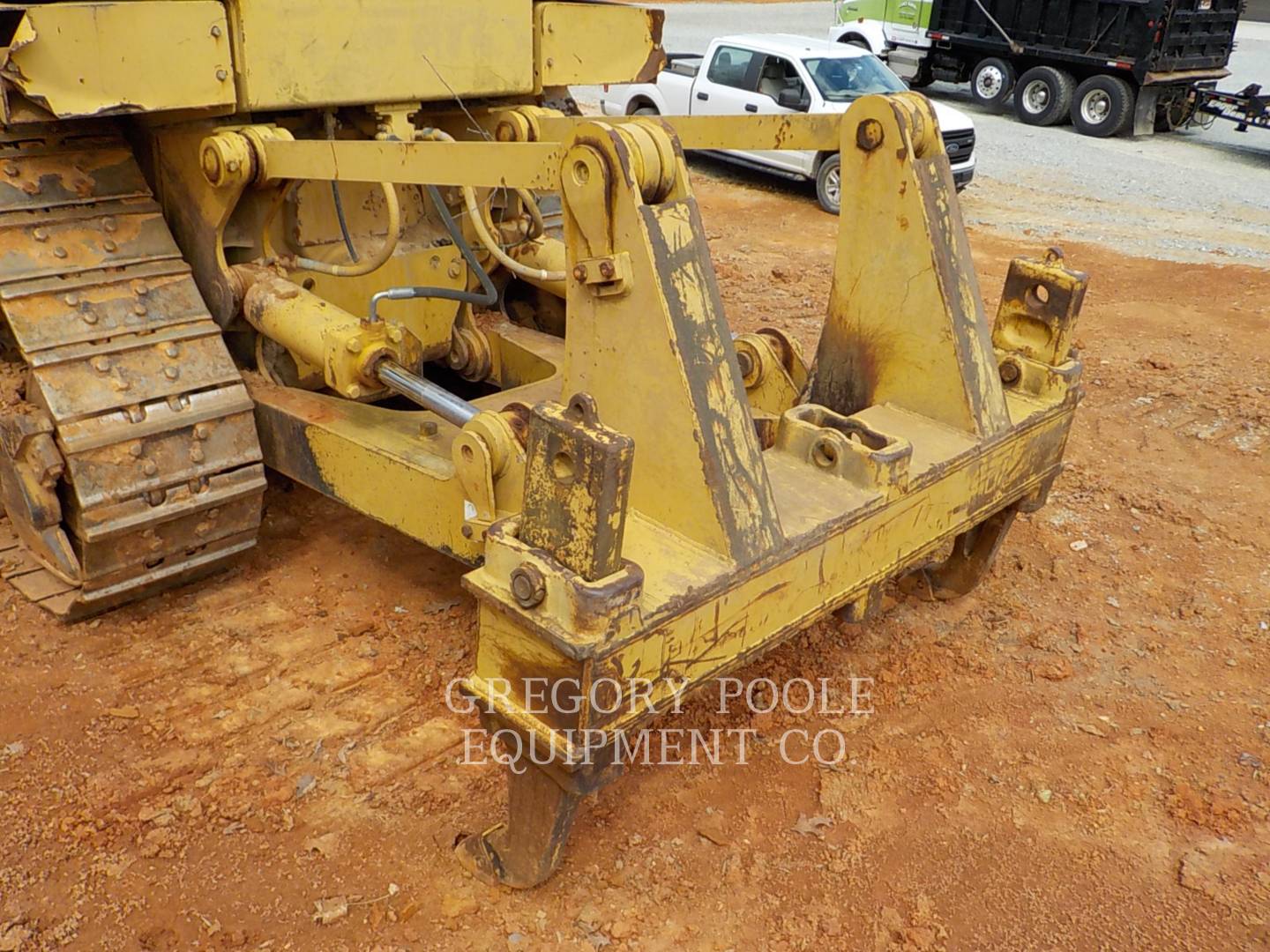

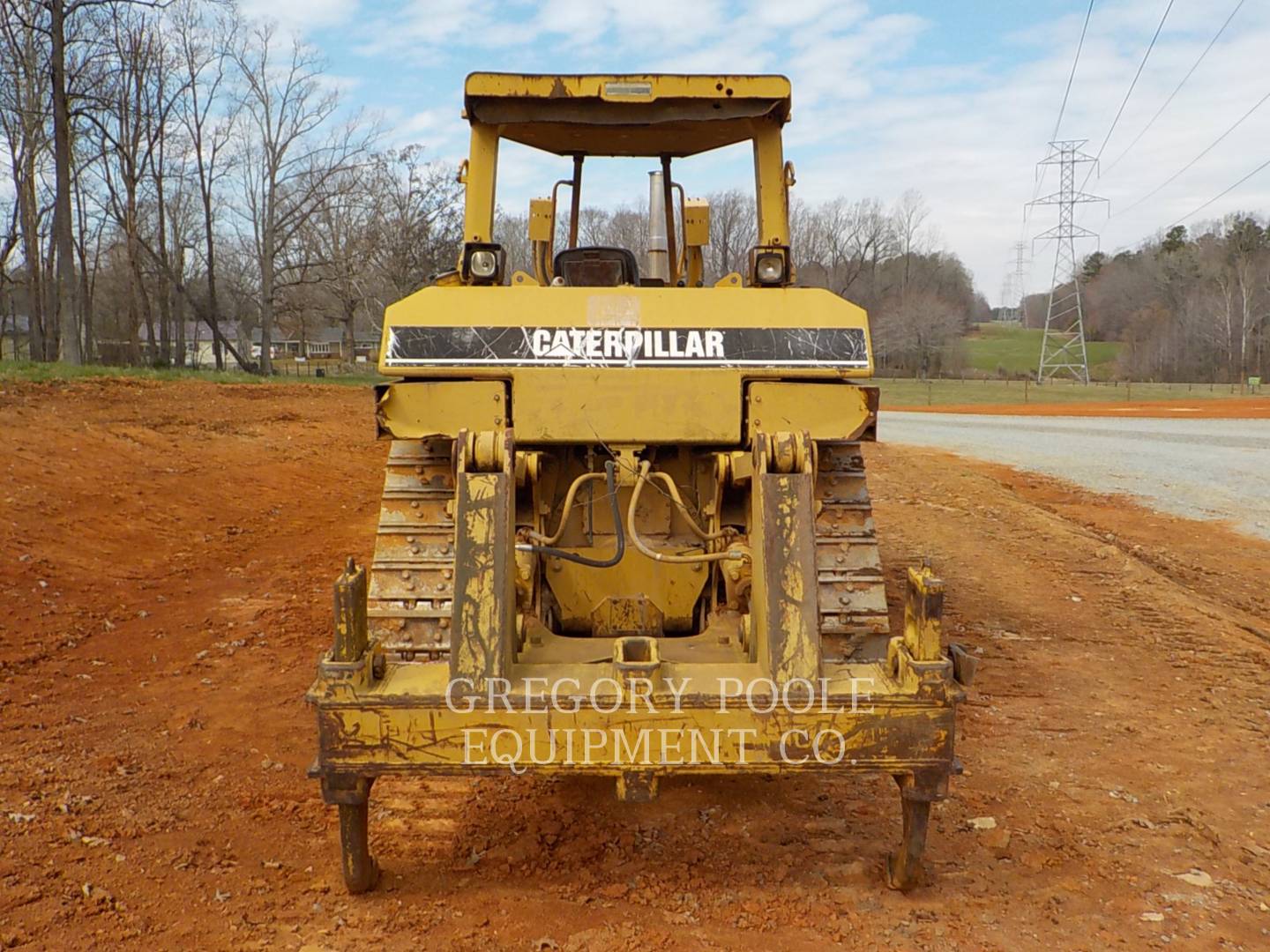

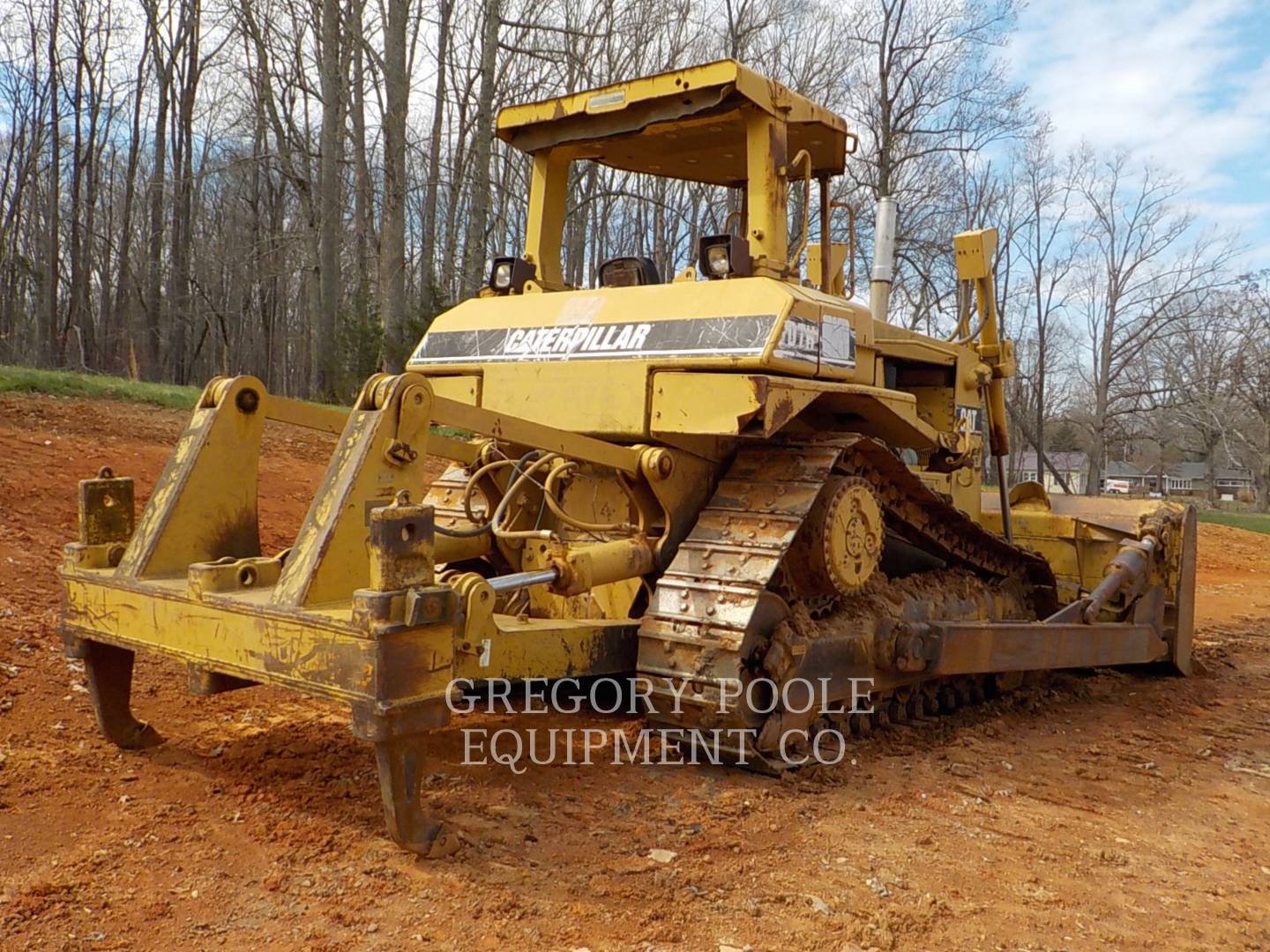

Ripper / Grapple / Winch

Beam / Frame

Good

Brackets / Studs

Good

Lines / Fittings - RIPPER / GRAPPLE / WINCH

Good

Pins & Bushings

Fair

Ripper Lift Cylinder

Fair

Shanks / Get

Fair

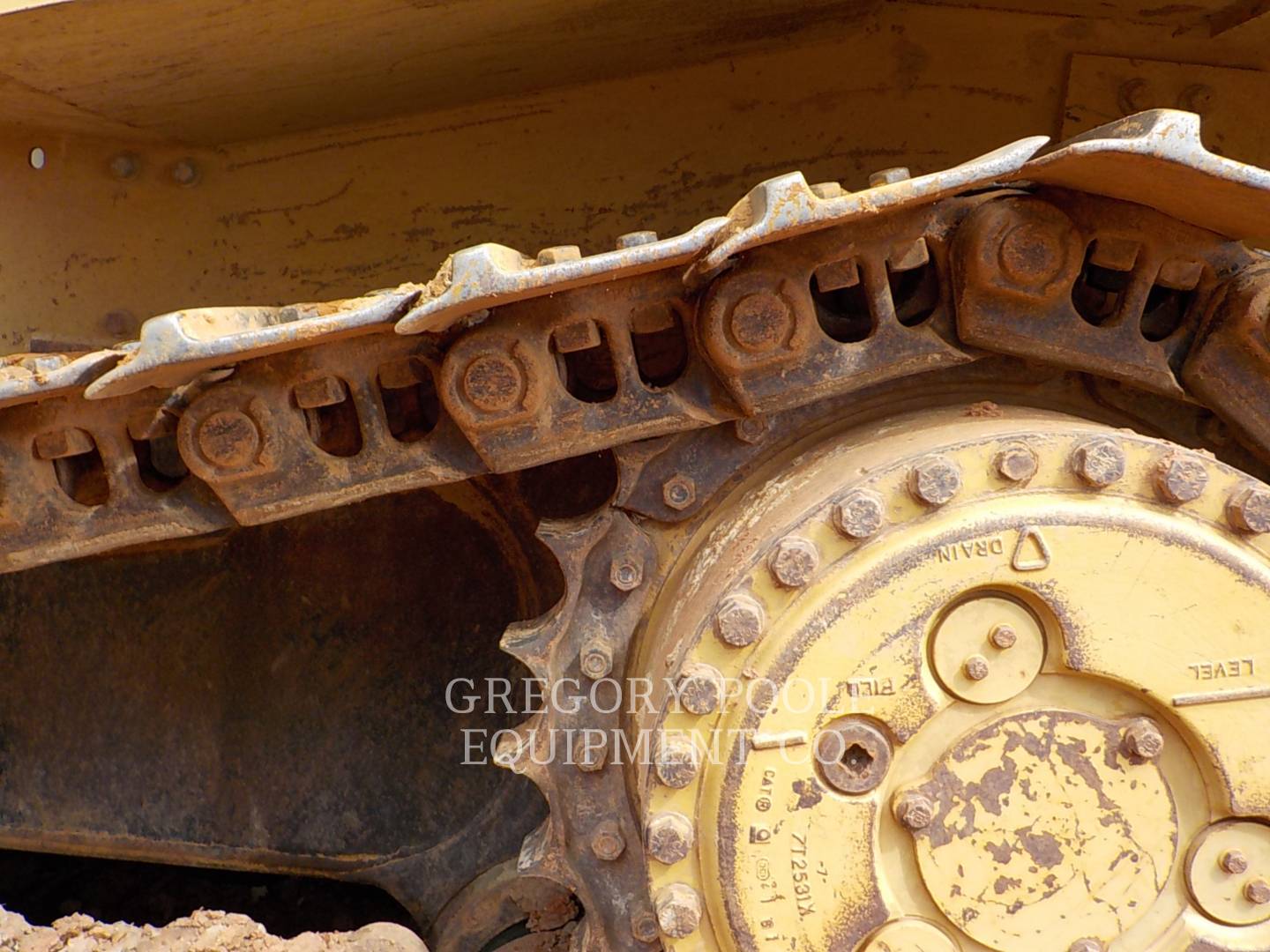

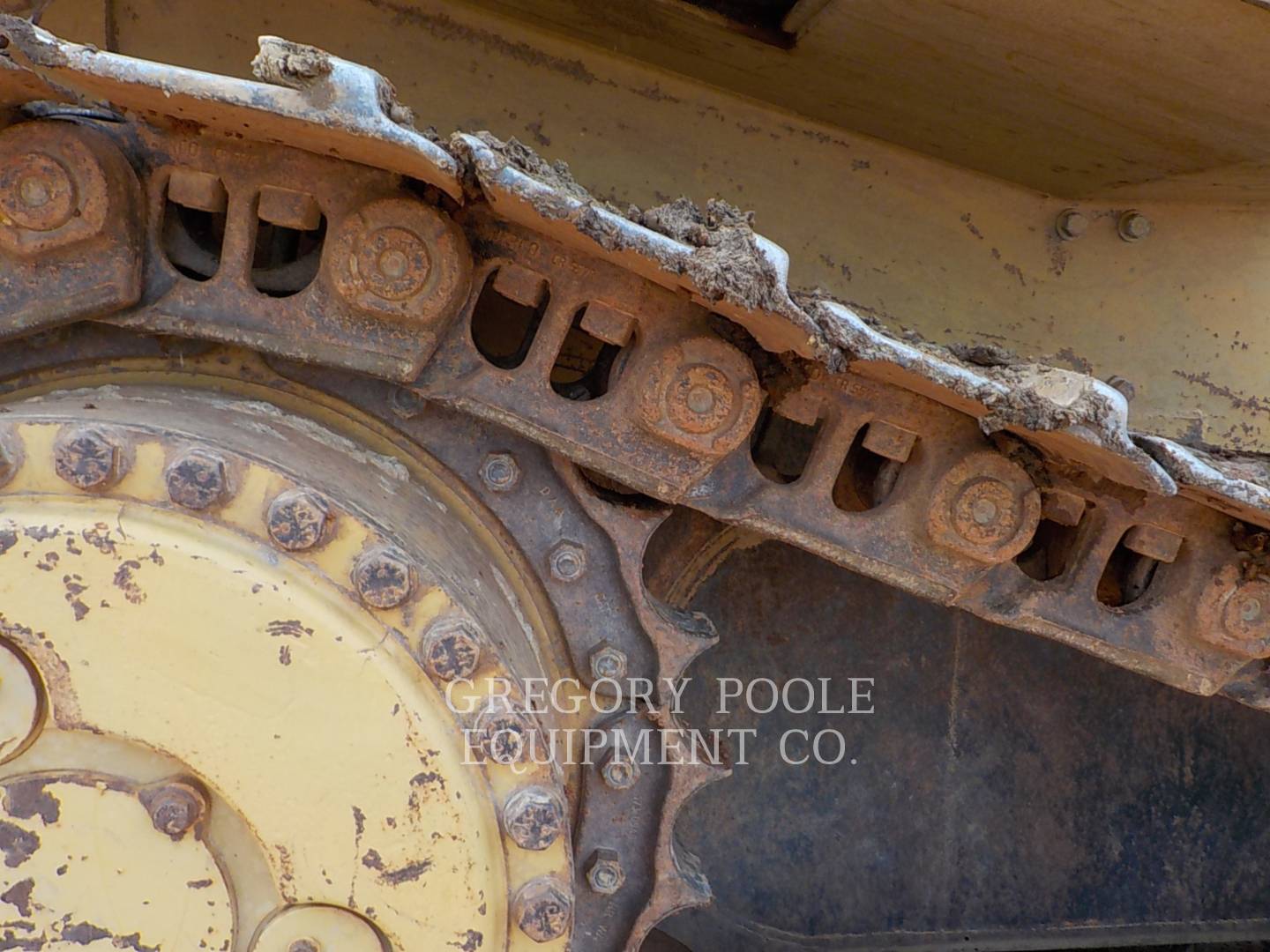

Undercarriage

Pins & Bushings Turned?

No

Track Frame - Left

Fair

Track Frame - Right

Good

Idlers Front

Left: 18 mm Measurement, Left: 35% Worn, Right: 18 mm Measurement, Right: 35% Worn

Idlers Rear

Left: 18 mm Measurement, Left: 35% Worn, Right: 18 mm Measurement, Right: 35% Worn

Links

Left: 135 mm Measurement, Left: 36% Worn, Right: 135 mm Measurement, Right: 36% Worn

Pins & Bushings (External)

Left: 71 mm Measurement, Left: 85% Worn, Right: 71 mm Measurement, Right: 85% Worn

Segments

Left: 85% Worn, Right: 85% Worn

Track Roller 1

Left: 29 mm Measurement, Left: 68% Worn, Right: 27 mm Measurement, Right: 58% Worn

Track Roller 2

Left: 28 mm Measurement, Left: 64% Worn, Right: 21 mm Measurement, Right: 26% Worn

Track Roller 3

Left: 30 mm Measurement, Left: 74% Worn, Right: 27 mm Measurement, Right: 58% Worn

Track Roller 4

Left: 30 mm Measurement, Left: 74% Worn

Track Roller 5

Left: 28 mm Measurement, Left: 64% Worn, Right: 28 mm Measurement, Right: 64% Worn

Track Roller 6

Left: 30 mm Measurement, Left: 74% Worn, Right: 32 mm Measurement, Right: 82% Worn

Track Roller 7

Left: 33 mm Measurement, Left: 85% Worn, Right: 31 mm Measurement, Right: 79% Worn

Final Drives

Housings, Left

Good

Housings, Right

Good

Planetaries / Differential, Left

Good

Planetaries / Differential, Right

Good
