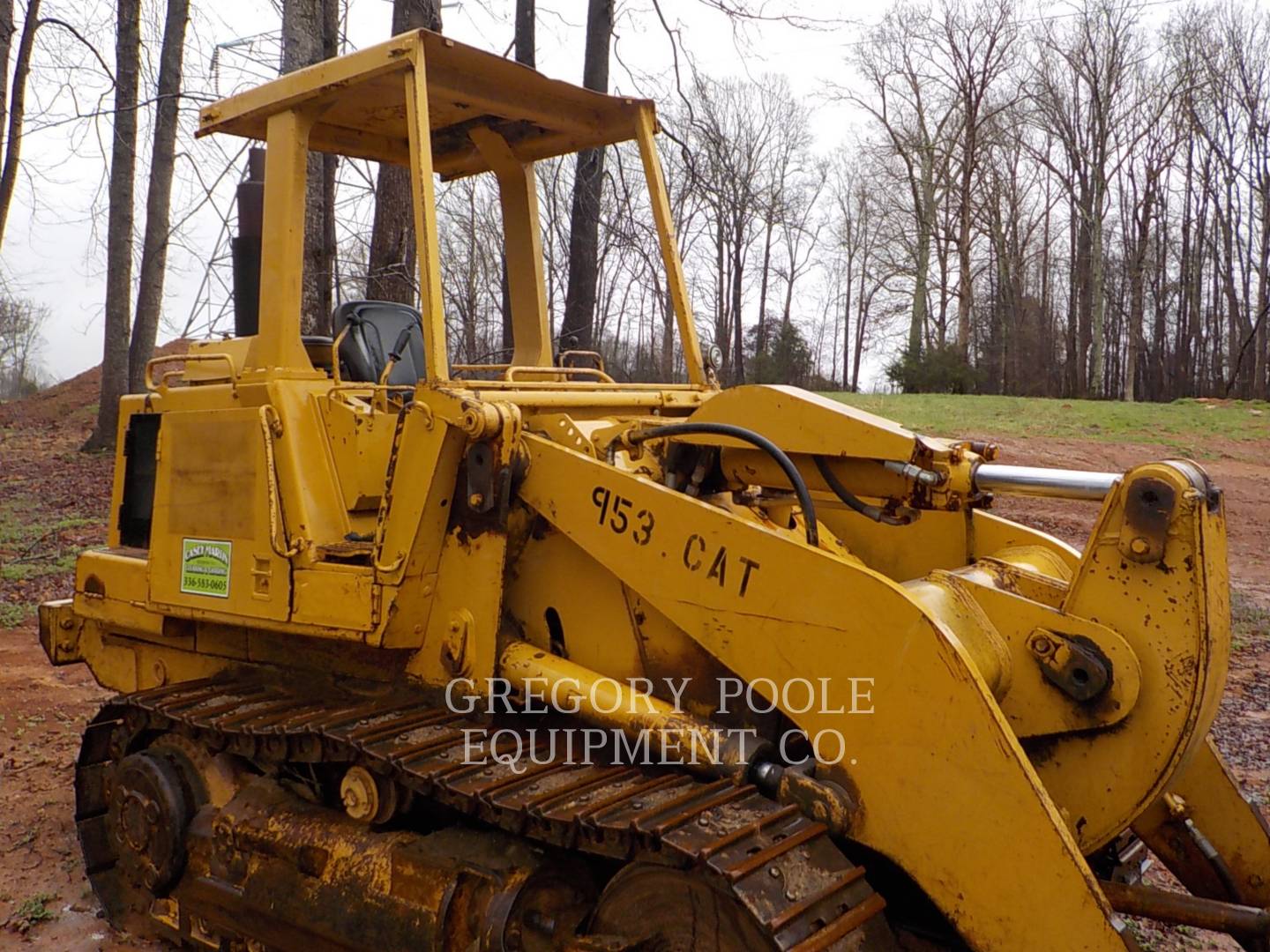

General Appearance

Cleaning Required

Yes

S.O.S. Taken

No

Bumper

Fair

Cab or Canopy

Good

Crankcase Guard / Battery Box

Fair

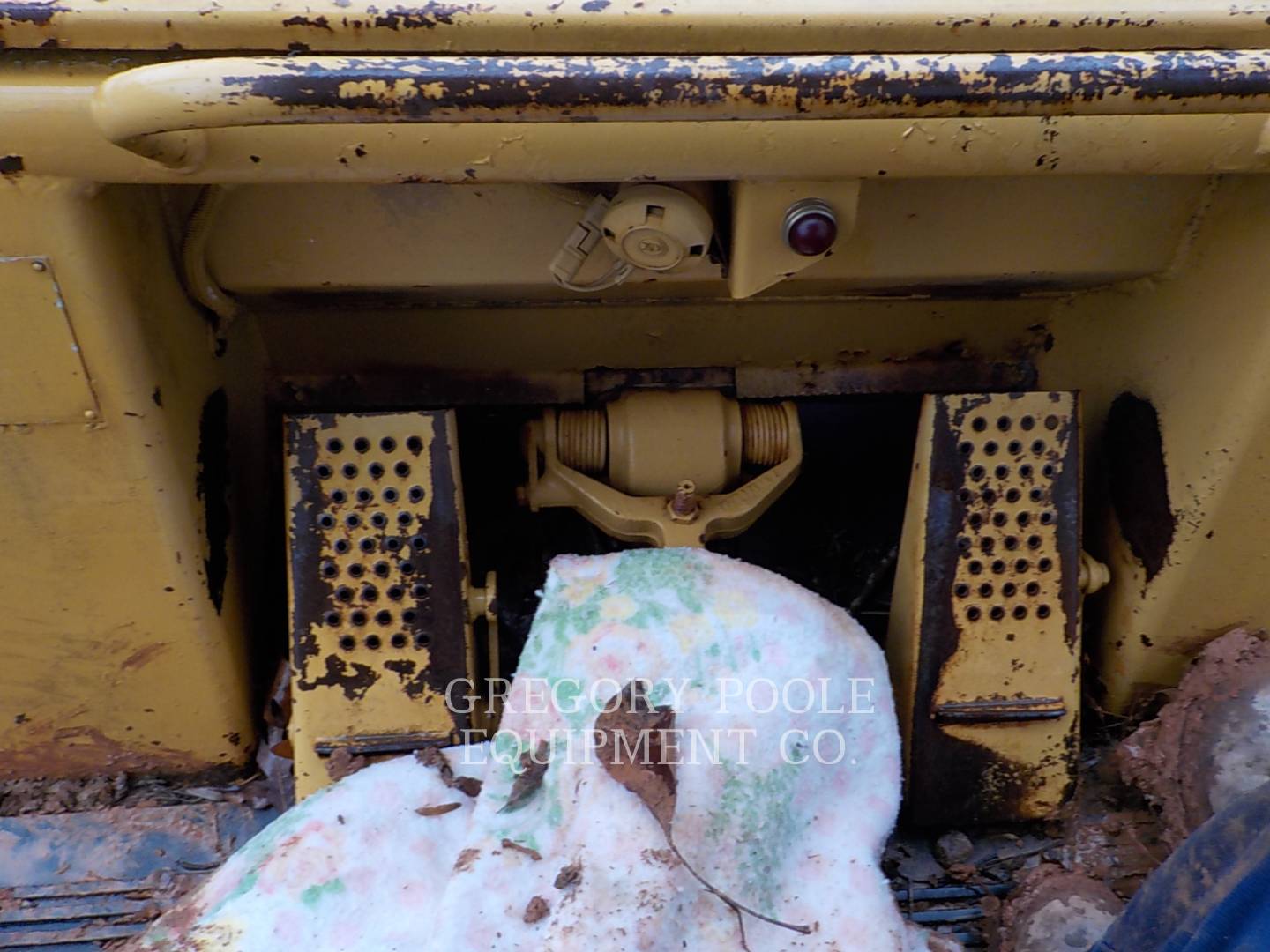

Draw Bar

Good

Eng. Enclose Hood / Stack

Fair

Fuel Tank

Good

Grab Irons

Fair

Main Frame

Fair

Paint

Fair

Pre-Cleaner Bowl

Fair

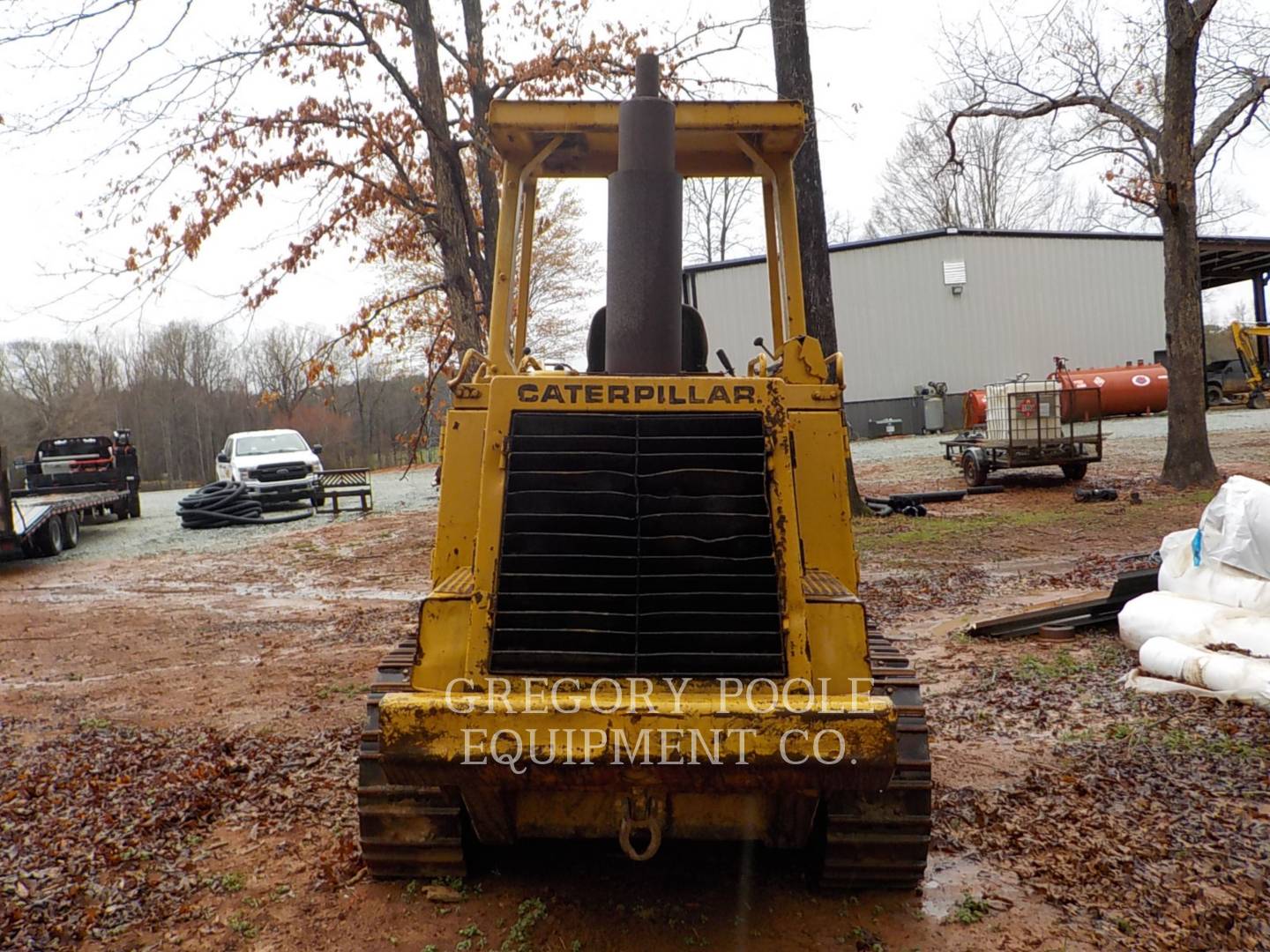

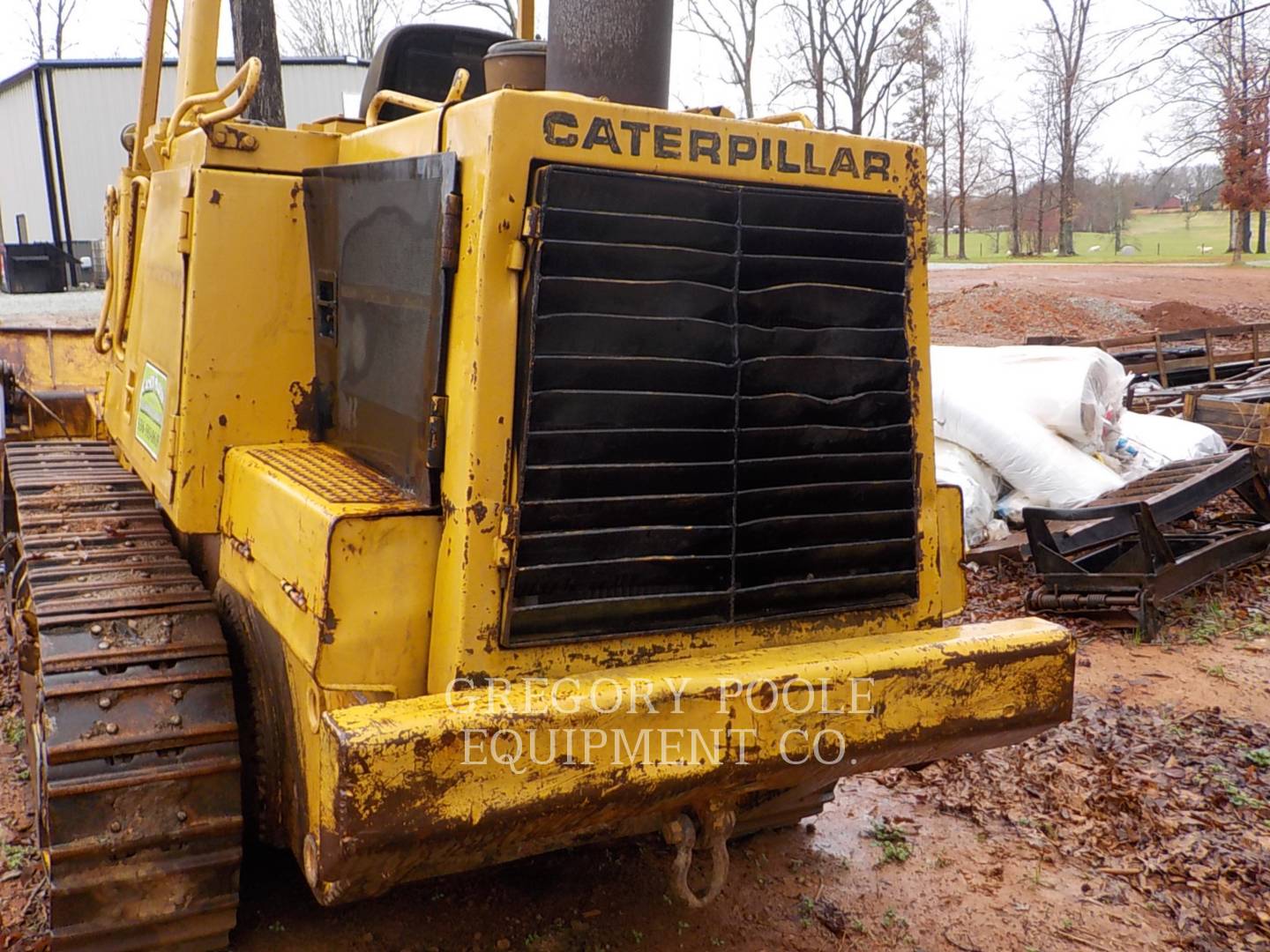

Radiator Grill & Shroud

Fair

Sheet Metal

Fair

Steps / Ladder

Fair

Safety Items

ROPS

Yes

Horn

Poor

Gauges, Operator Station, Console

Back Up Alarm

No

Dash Console

Poor

EMS Panel / Warnings

Poor

Floor Boards

Fair

Glass/Mirrors

Poor

Meter

Poor

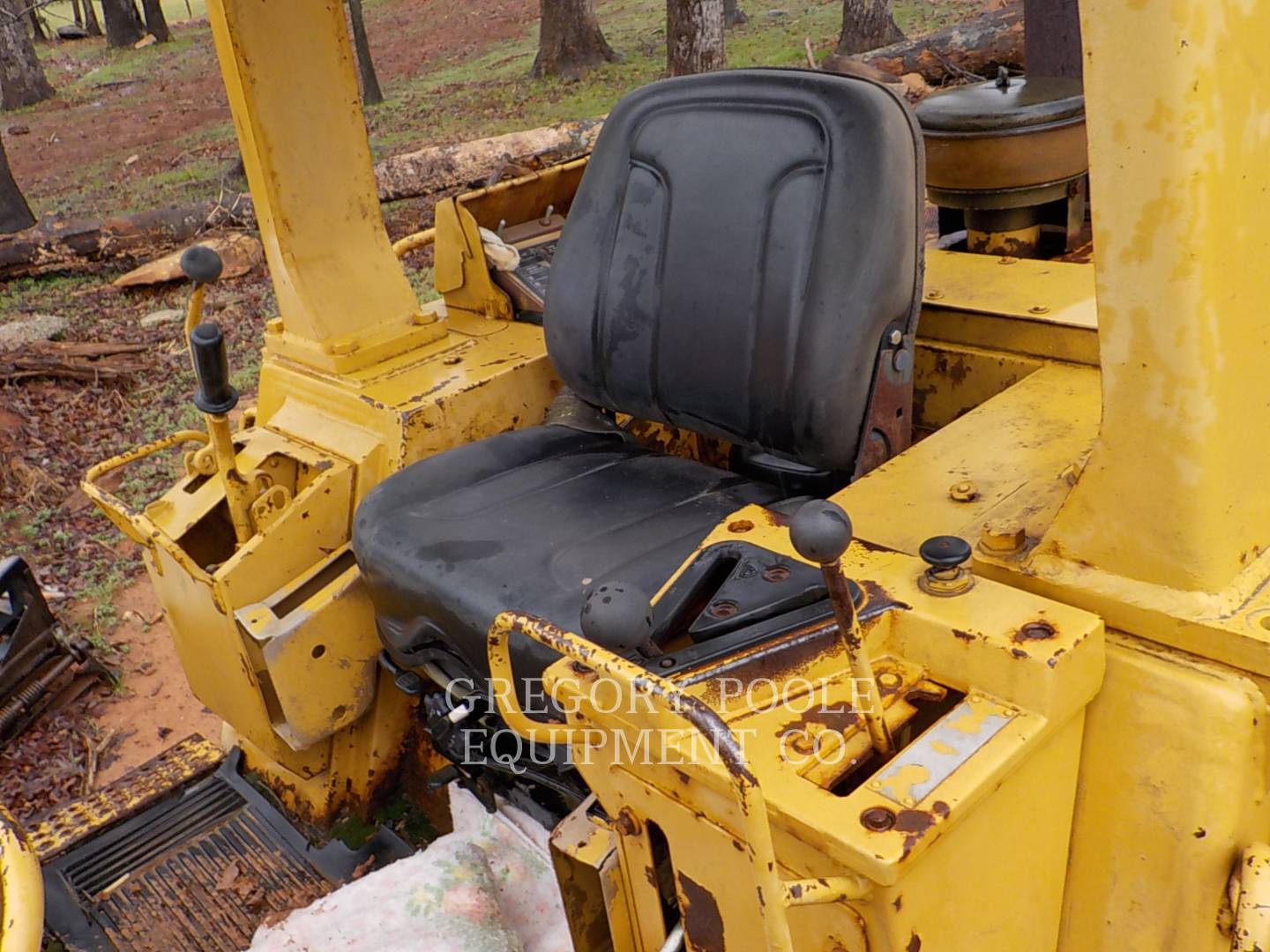

Seat Cushion / Arm Rest

Fair

Switches

Fair

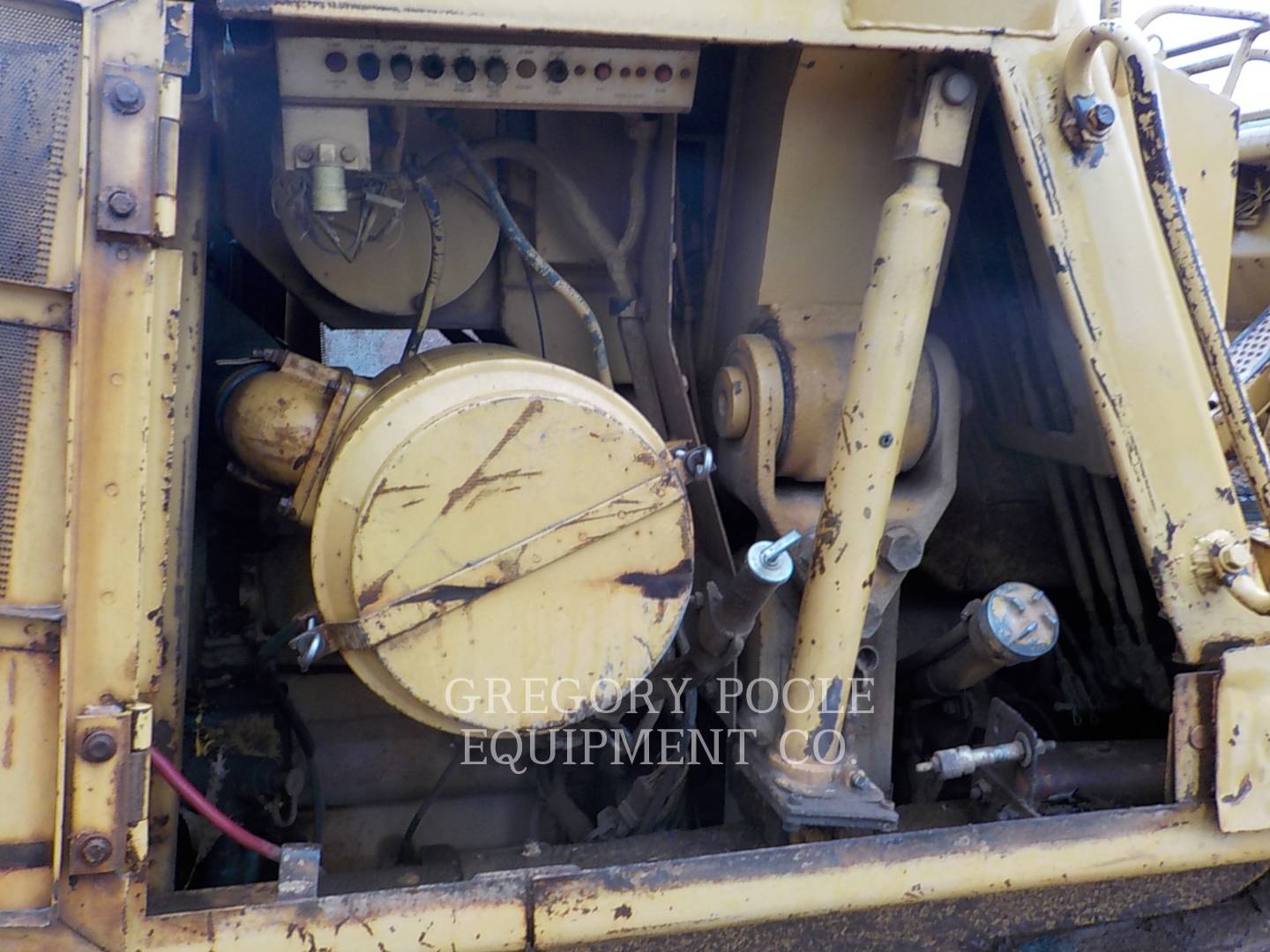

Engine

Blow By

Yes

Compression in Radiator

No

Knocking

No

Oil Leaks

Yes

Water in Oil

No

Belts / Pulleys

Fair

Engine Supports

Good

Exhaust / Muffler

Fair

Fuel Injection System

Good

Governor

Fair

Operating Condition - ENGINE

Good

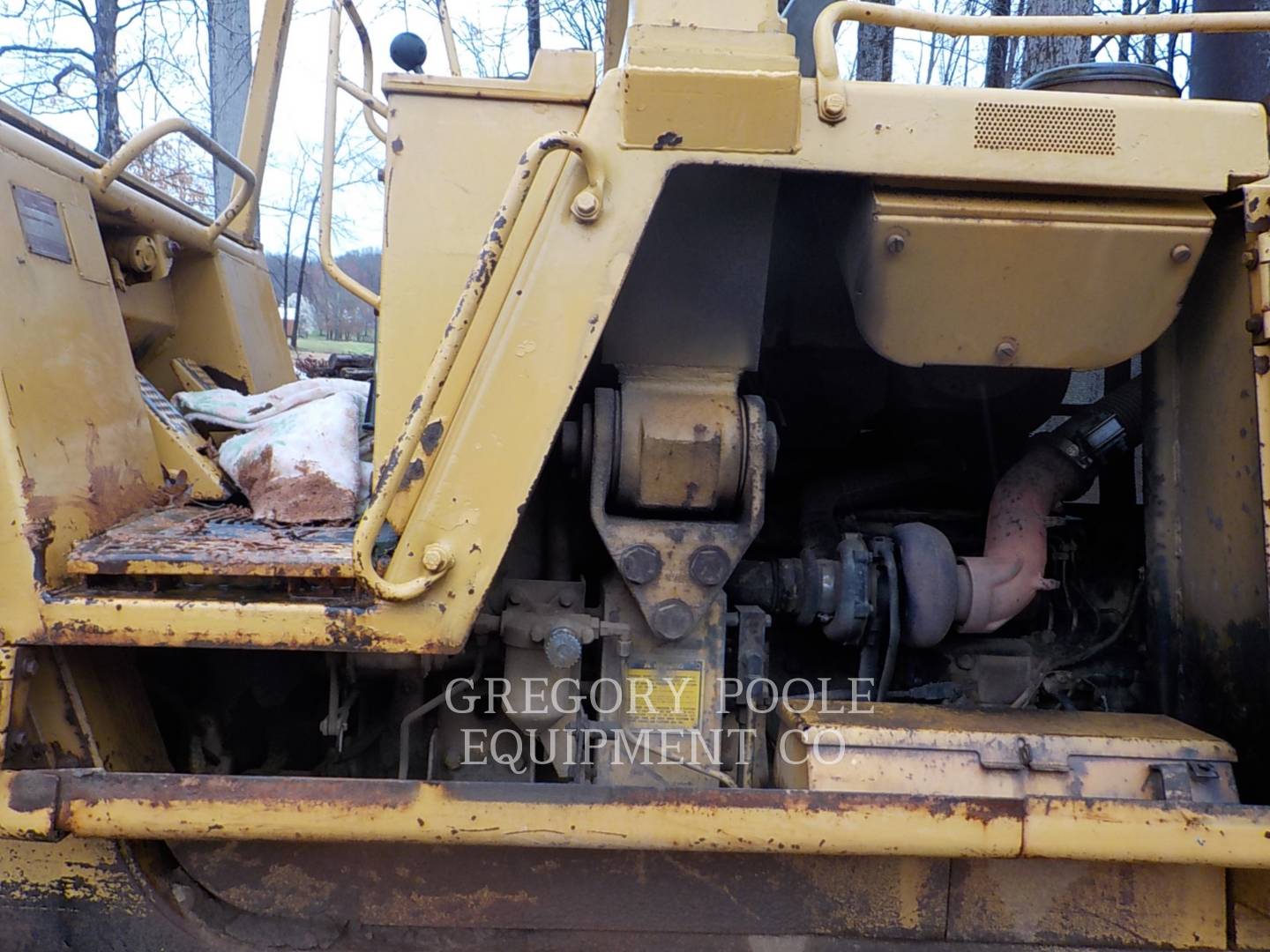

Turbocharger / Blower

Poor

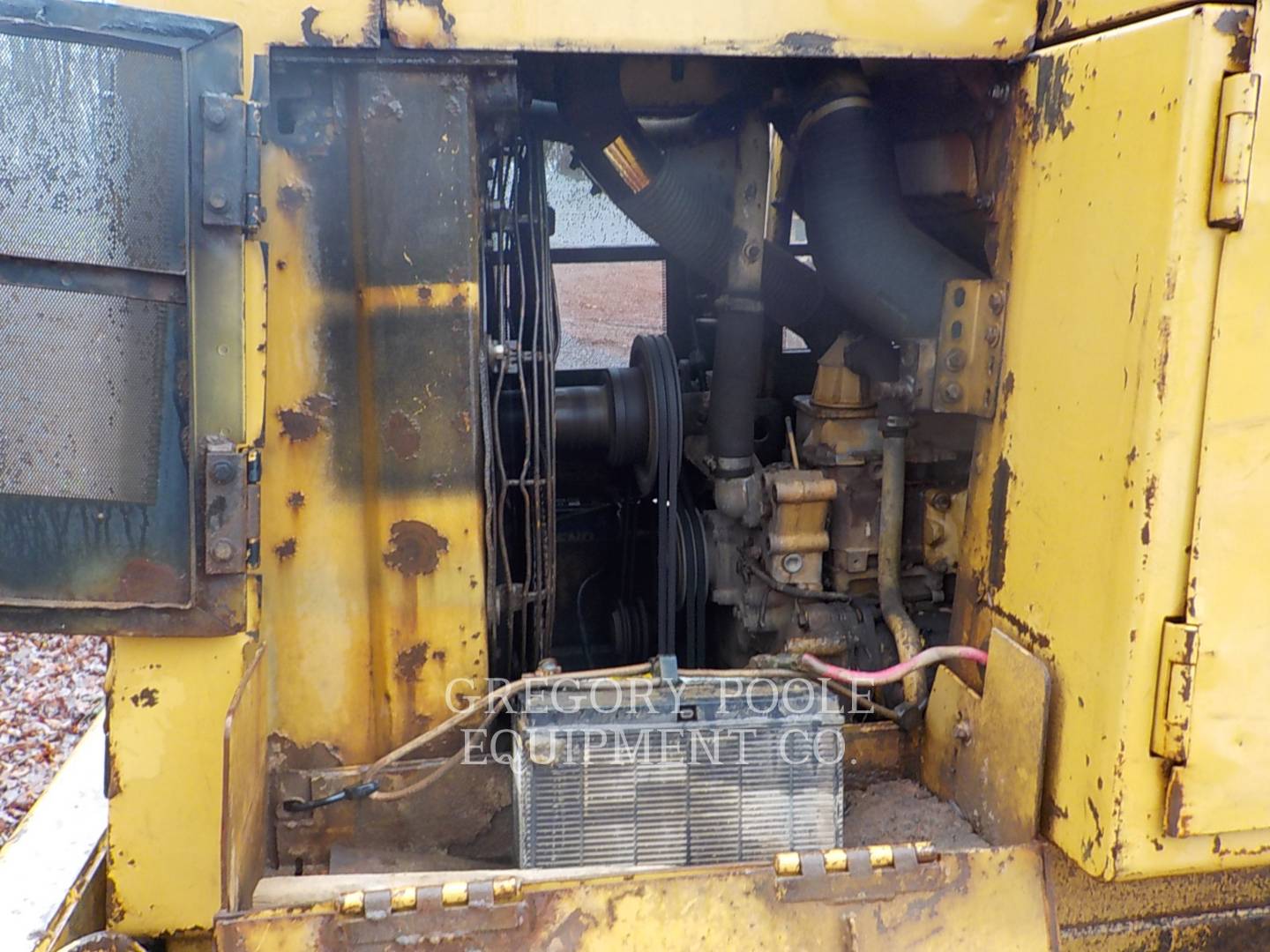

Cooling System

Leaks - COOLING SYSTEM

Yes

Coolers

Good

Fan

Good

Fan Drive

Good

Hoses

Fair

Radiator

Good

Water Pump

Good

Electrical, Starting And Charging System

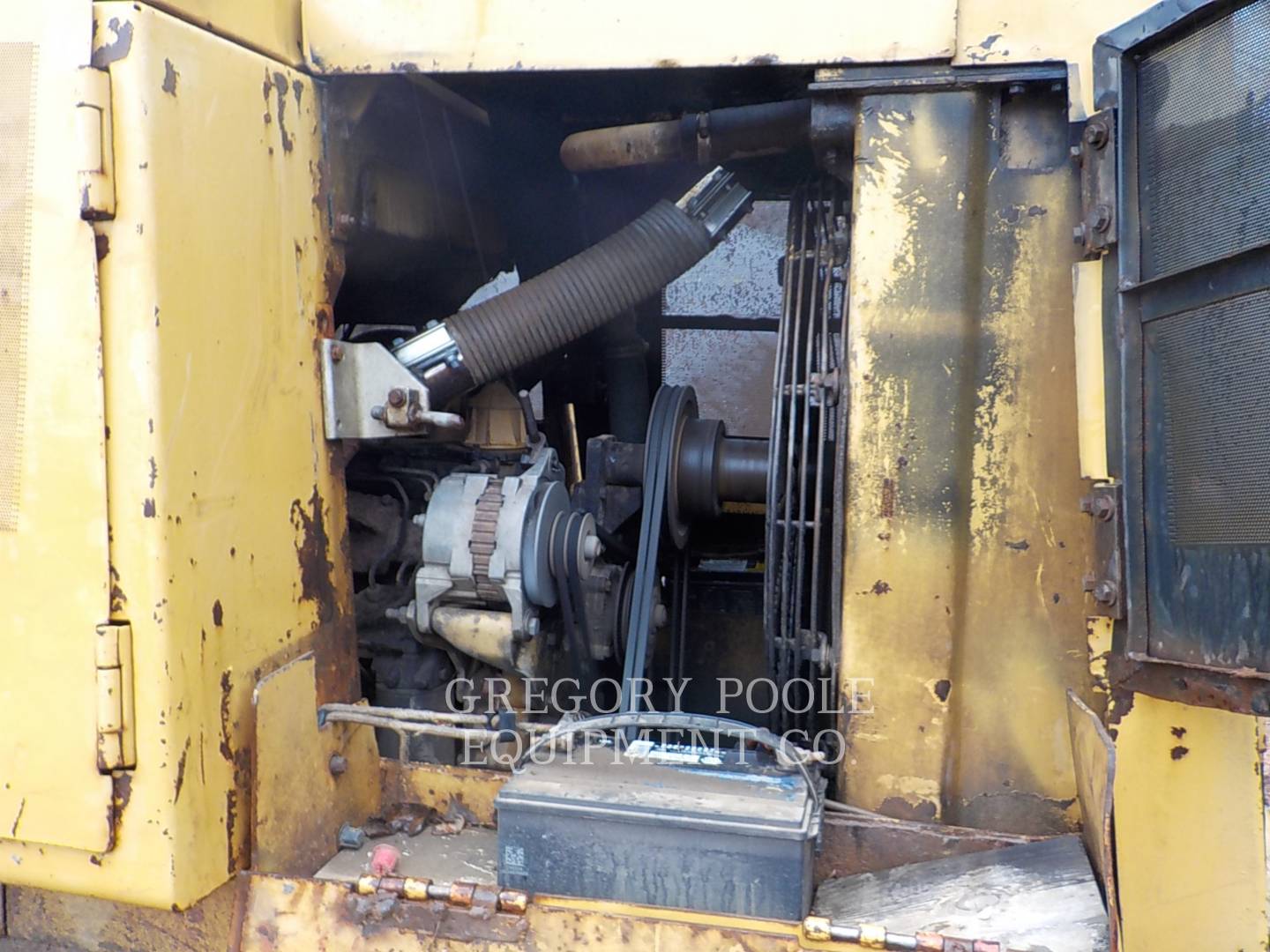

Alternator

Good

Batteries / Cables

Fair

Starter

Fair

Wiring

Good

Transmission

Leaks - TRANSMISSION

Yes

Transmission - Noisy

No

Case

Good

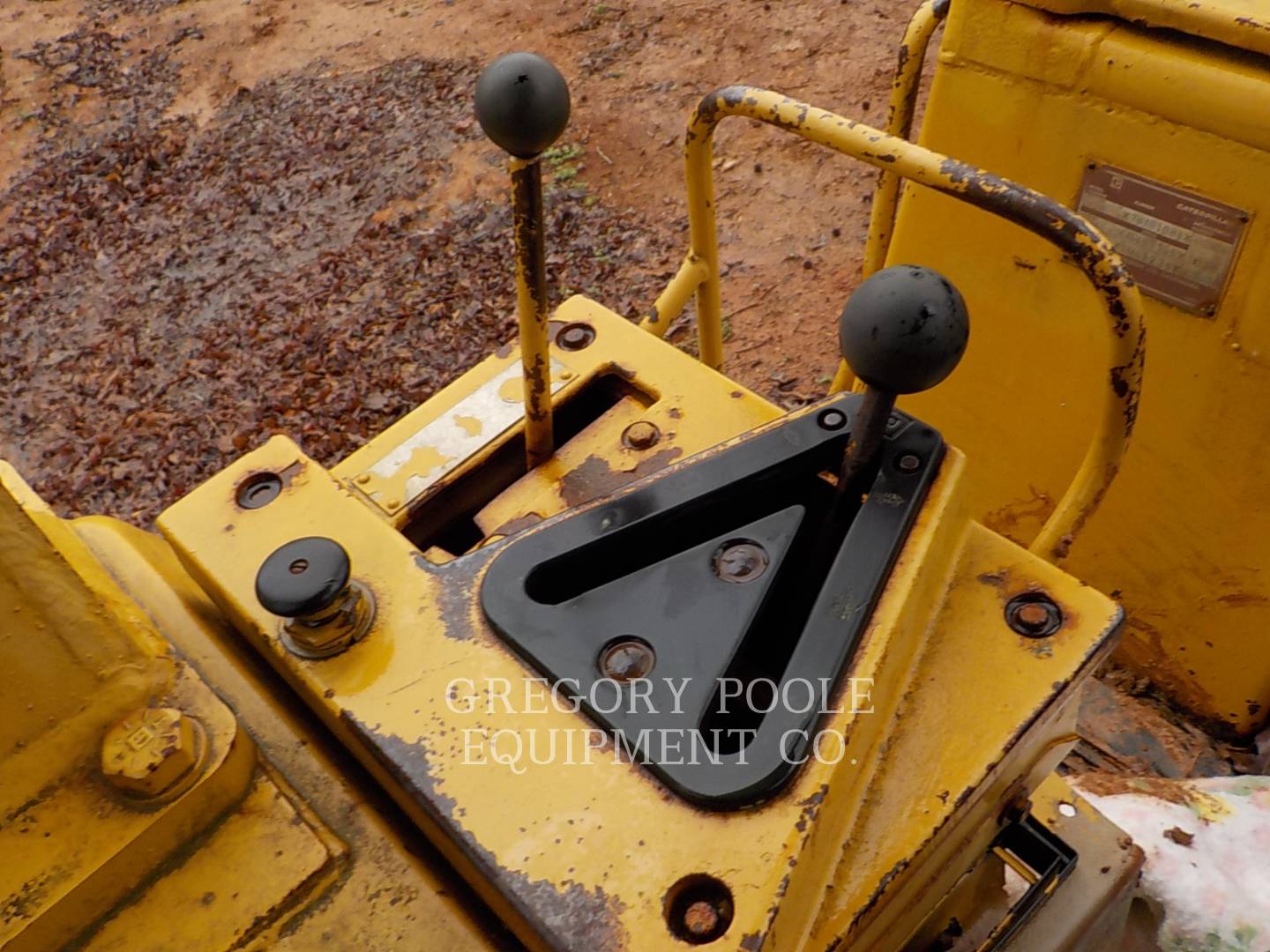

Controls

Fair

Cooler

Good

Lines / Fittings

Good

Operating Condition - TRANSMISSION

Fair

Pump - TRANSMISSION

Good

Seals

Good

Transmission - Forward Shifts

Fair

Transmission - Reverse Shifts

Fair

Steering

Steering Linkage

Good

Steering Motor

Good

Steering Valves / Pumps

Good

Brake

Brake Linkage

Good

Control Valve

Good

Lines - BRAKE

Good

Operating Condition - BRAKE

Good

Parking Brake

Good

Pump - BRAKE

Good

Type (Pedal, Lever)

Good

Type (Wet, Dry)

Good

Hydraulics

Leaks - HYDRAULICS

Yes

Bucket & Hoist Kickout

Poor

Bucket Cylinder

Fair

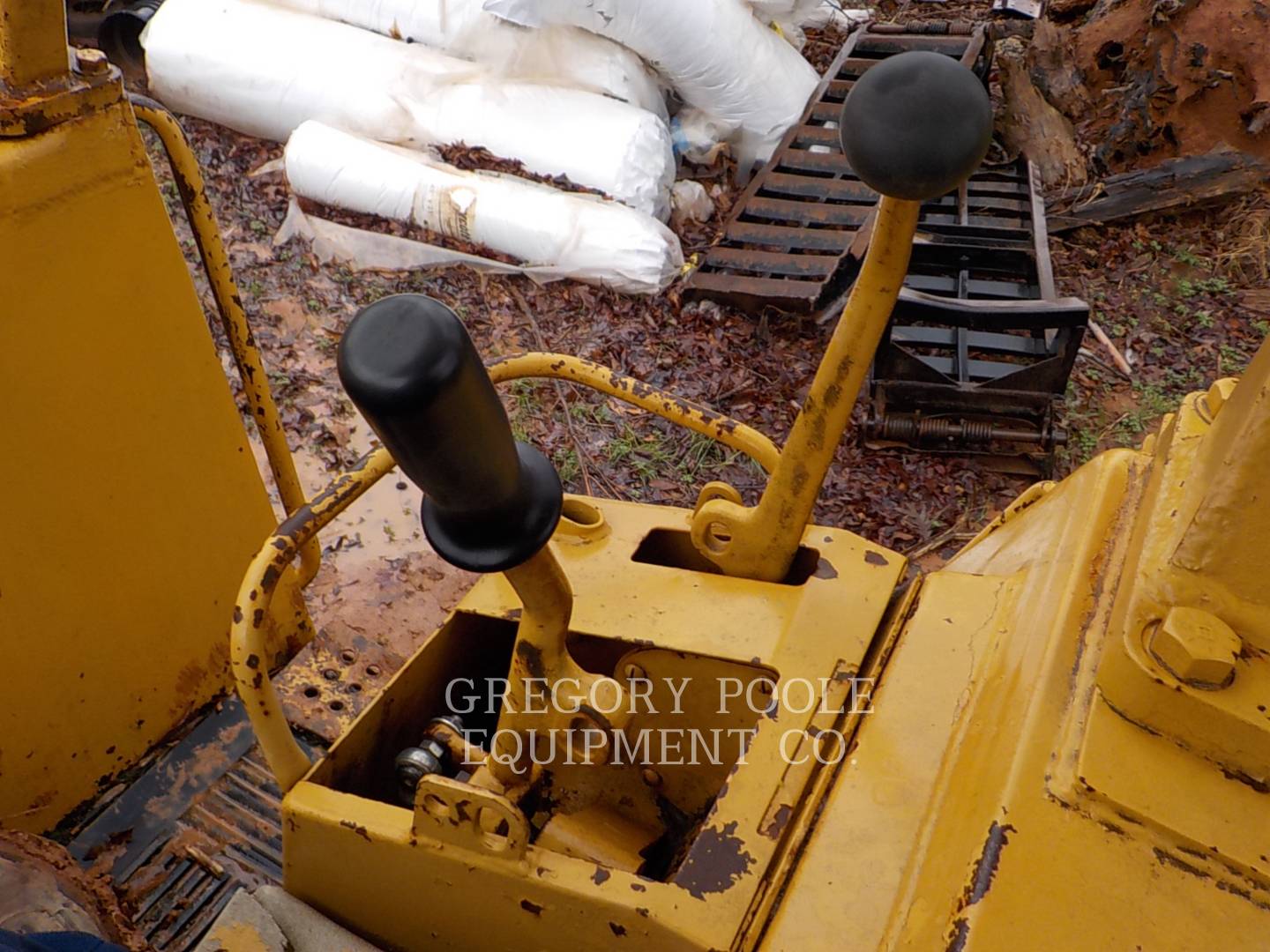

Control Linkage - HYDRAULICS

Fair

Hoist Cylinder

Poor

Hose Lines

Fair

Overall Operating Condition

Fair

Pumps & Valves

Good

Tank

Good

Tilt Cylinder

Good

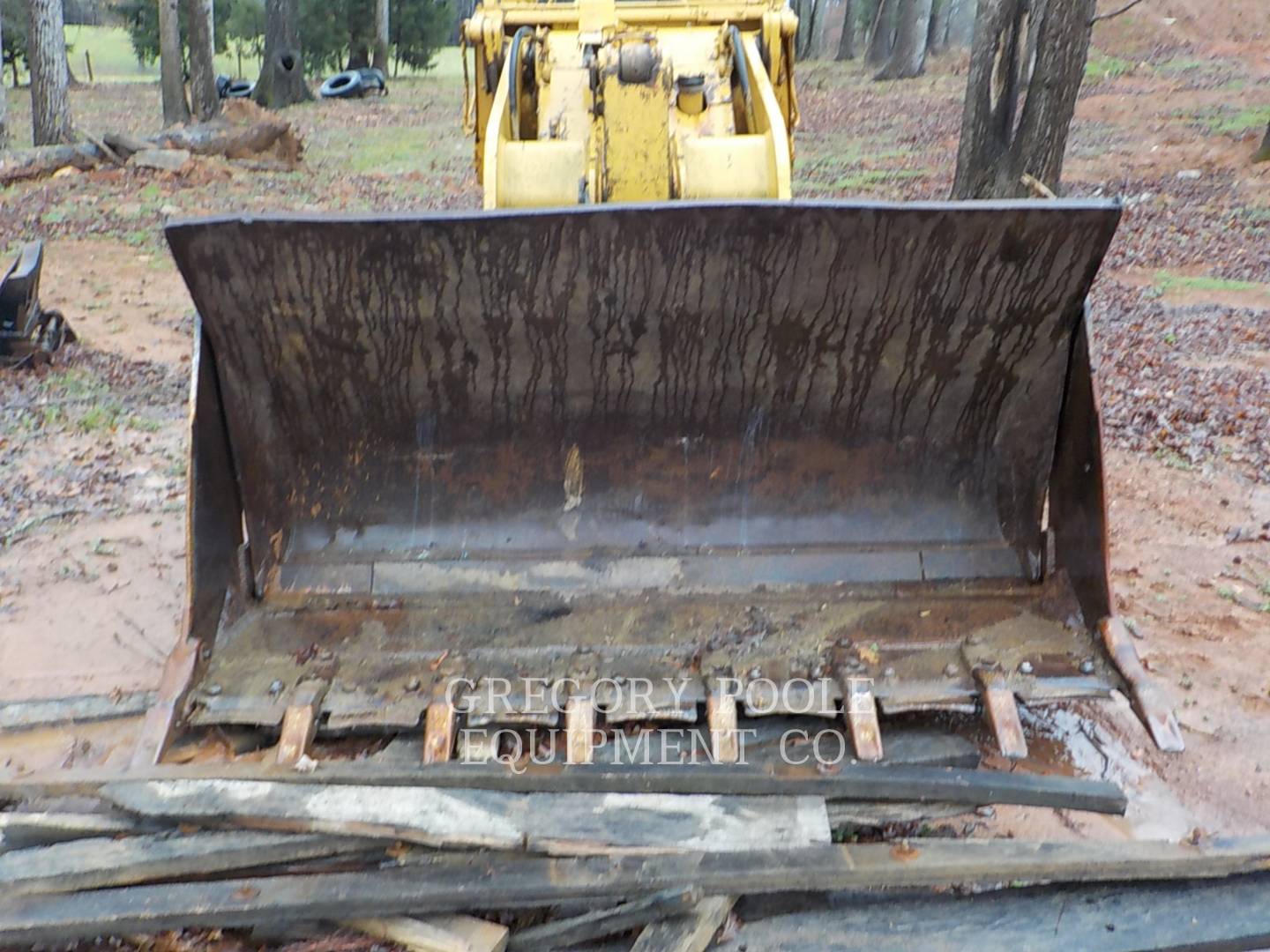

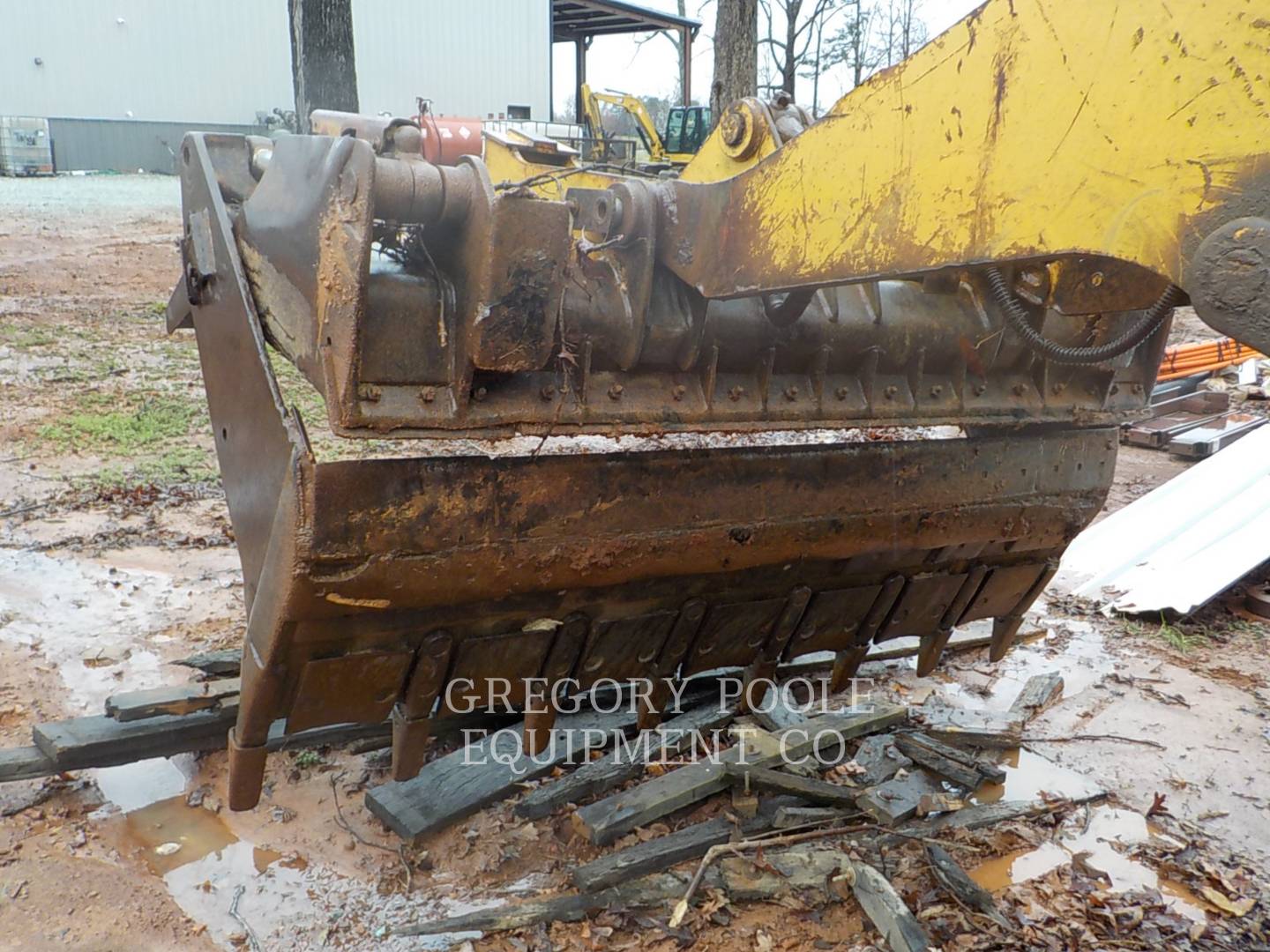

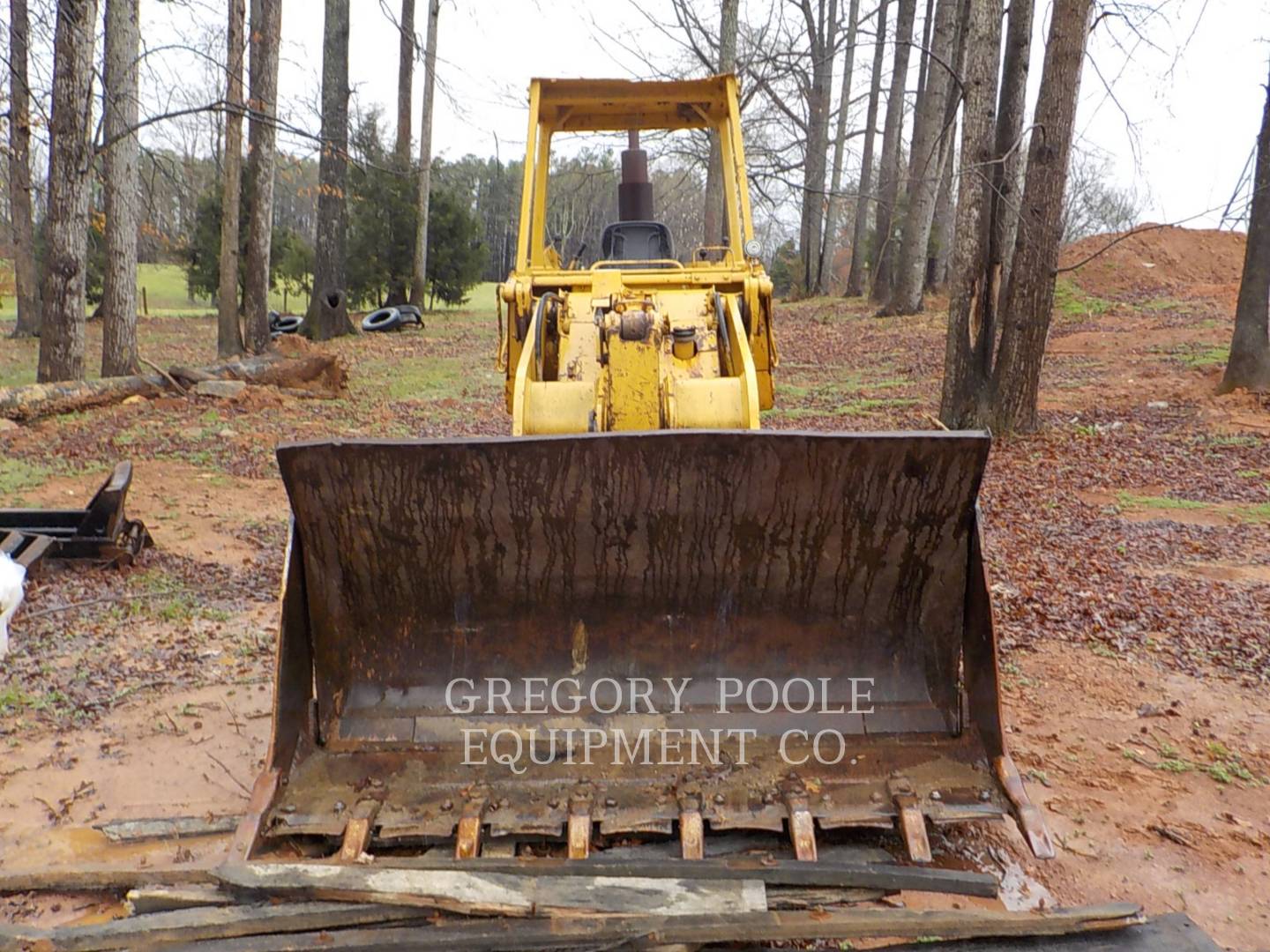

Bucket

Bucket Bottom

Fair

Bucket Floor

Fair

Bucket Linkage - BUCKET

Poor

Bucket Sides

Fair

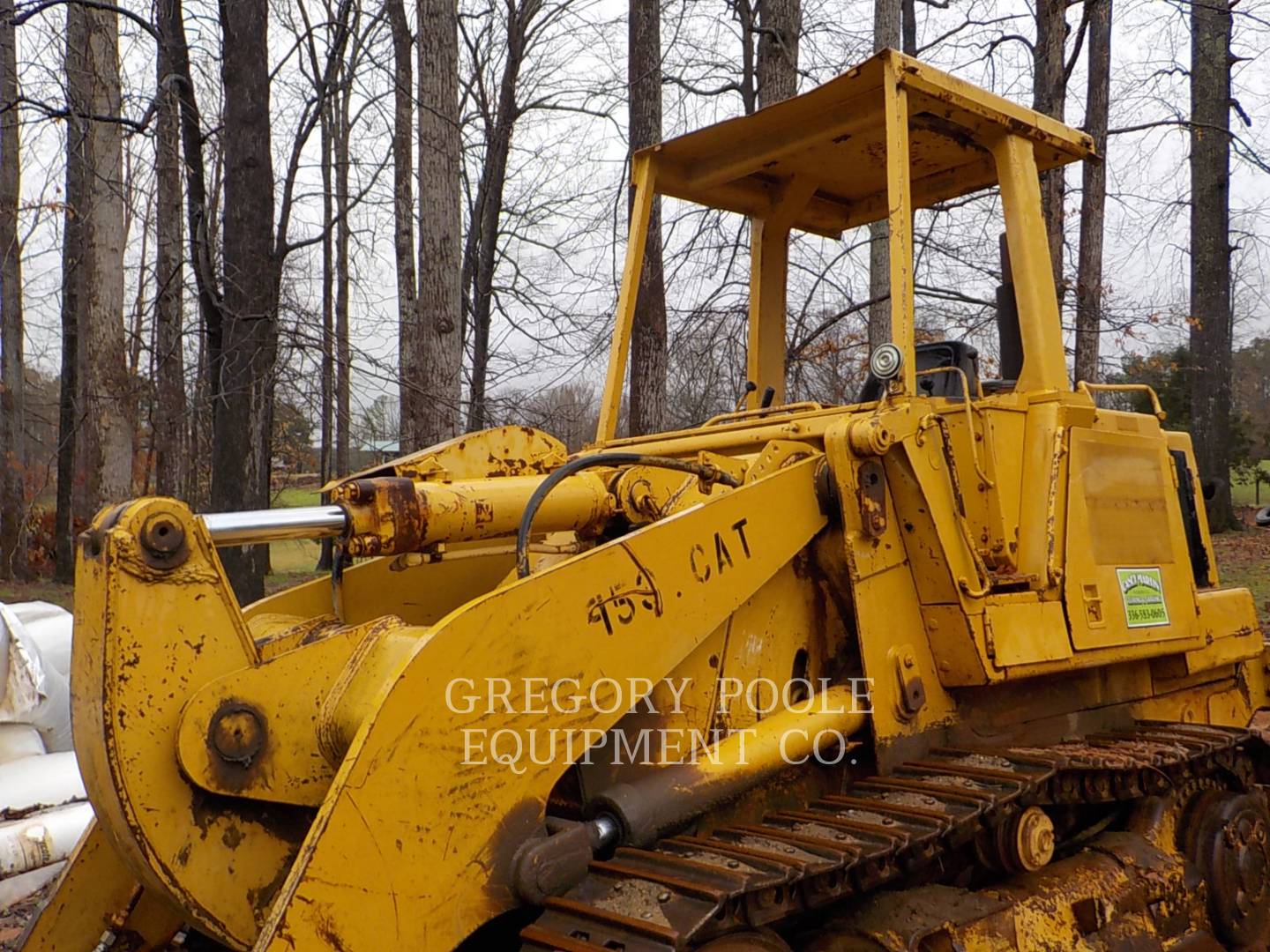

Loader Frame

Good

Loader Pins & Bushings

Fair

Multi Purpose Cylinders

Fair

Segments

Fair

Teeth / Adapters

Fair

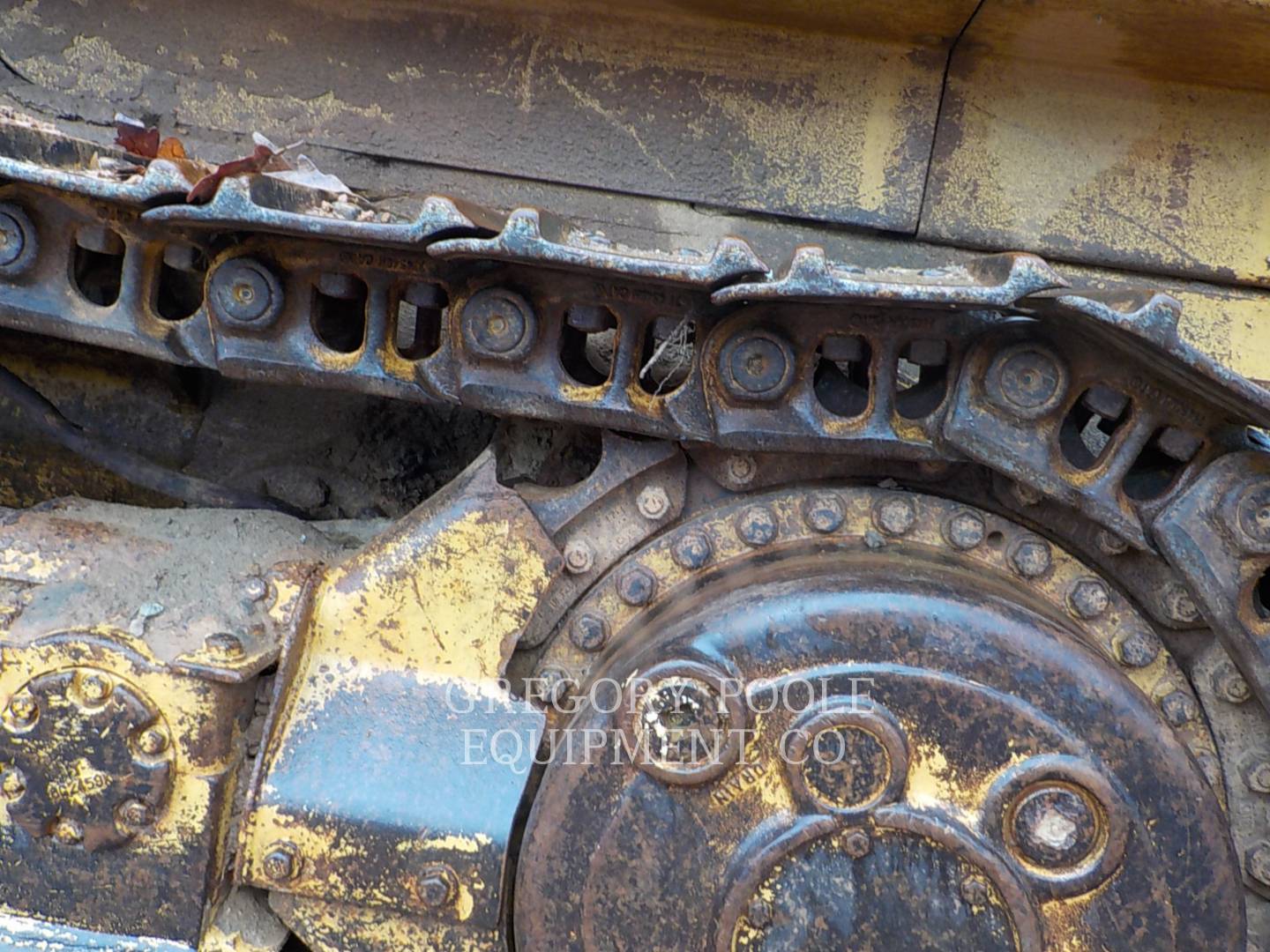

Undercarriage

Pins & Bushings Turned?

No

Track Frame - Left

Good

Track Frame - Right

Good

Carrier Rollers Front

Left: 164 mm Measurement, Left: 30% Worn, Right: 166 mm Measurement, Right: 22% Worn

Idlers Front

Left: 22 mm Measurement, Left: 42% Worn, Right: 19 mm Measurement, Right: 1% Worn

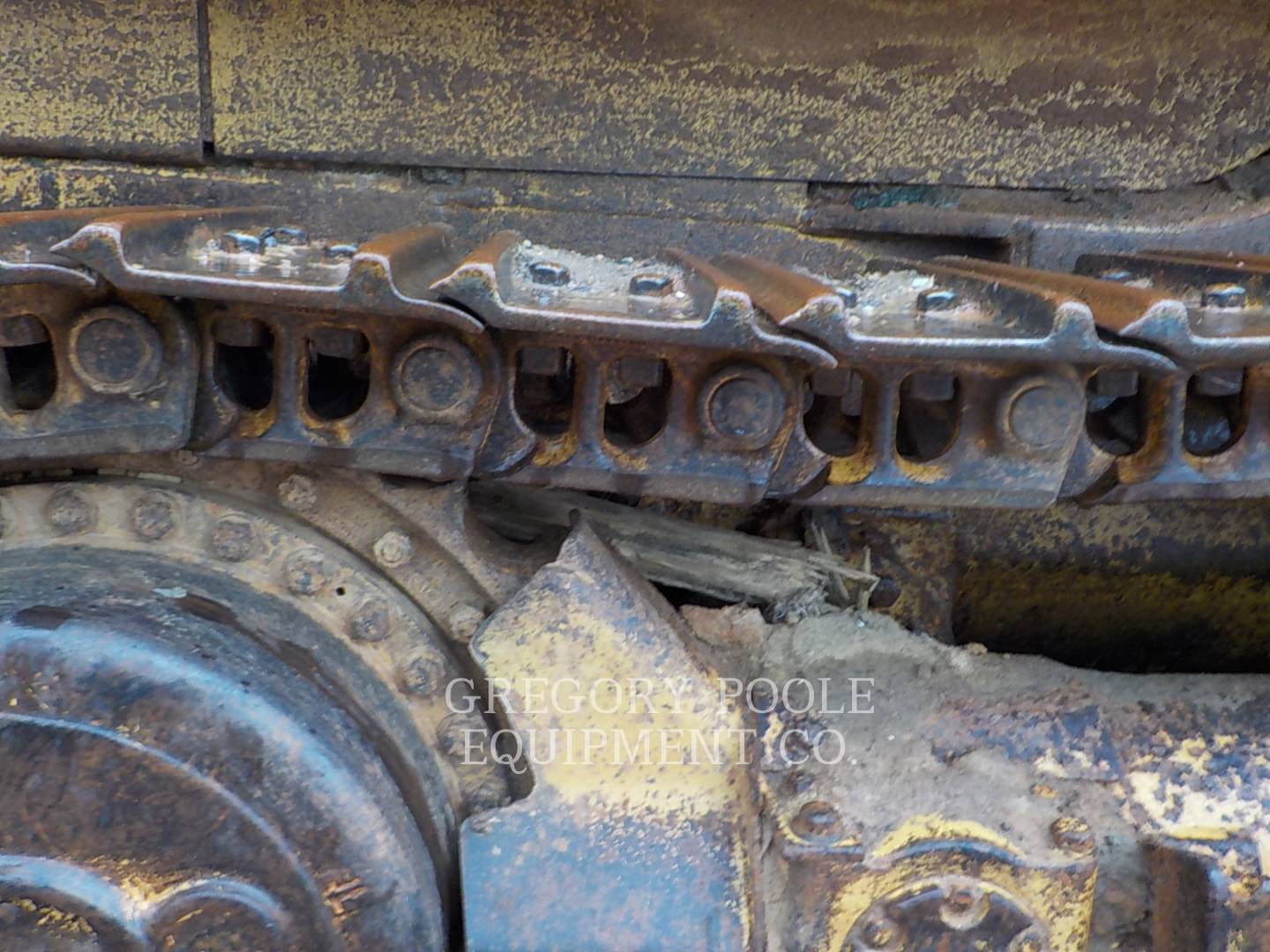

Links

Left: 105 mm Measurement, Left: 40% Worn, Right: 105 mm Measurement, Right: 40% Worn

Pins & Bushings (External)

Left: 57 mm Measurement, Left: 72% Worn, Right: 57 mm Measurement, Right: 72% Worn

Segments

Left: 72% Worn, Right: 72% Worn

Track Roller 1

Left: 21 mm Measurement, Left: 40% Worn, Right: 21 mm Measurement, Right: 40% Worn

Track Roller 2

Left: 20 mm Measurement, Left: 32% Worn, Right: 20 mm Measurement, Right: 32% Worn

Track Roller 3

Left: 20 mm Measurement, Left: 32% Worn, Right: 20 mm Measurement, Right: 32% Worn

Track Roller 4

Left: 20 mm Measurement, Left: 32% Worn, Right: 20 mm Measurement, Right: 32% Worn

Track Roller 5

Left: 20 mm Measurement, Left: 32% Worn, Right: 20 mm Measurement, Right: 32% Worn

Track Shoes (Width)

Left: 23 mm Measurement, Left: 60% Worn, Right: 23 mm Measurement, Right: 60% Worn

Final Drives

Housings, Left

Good

Housings, Right

Good

Planetaries, Left

Good

Planetaries, Right

Good
