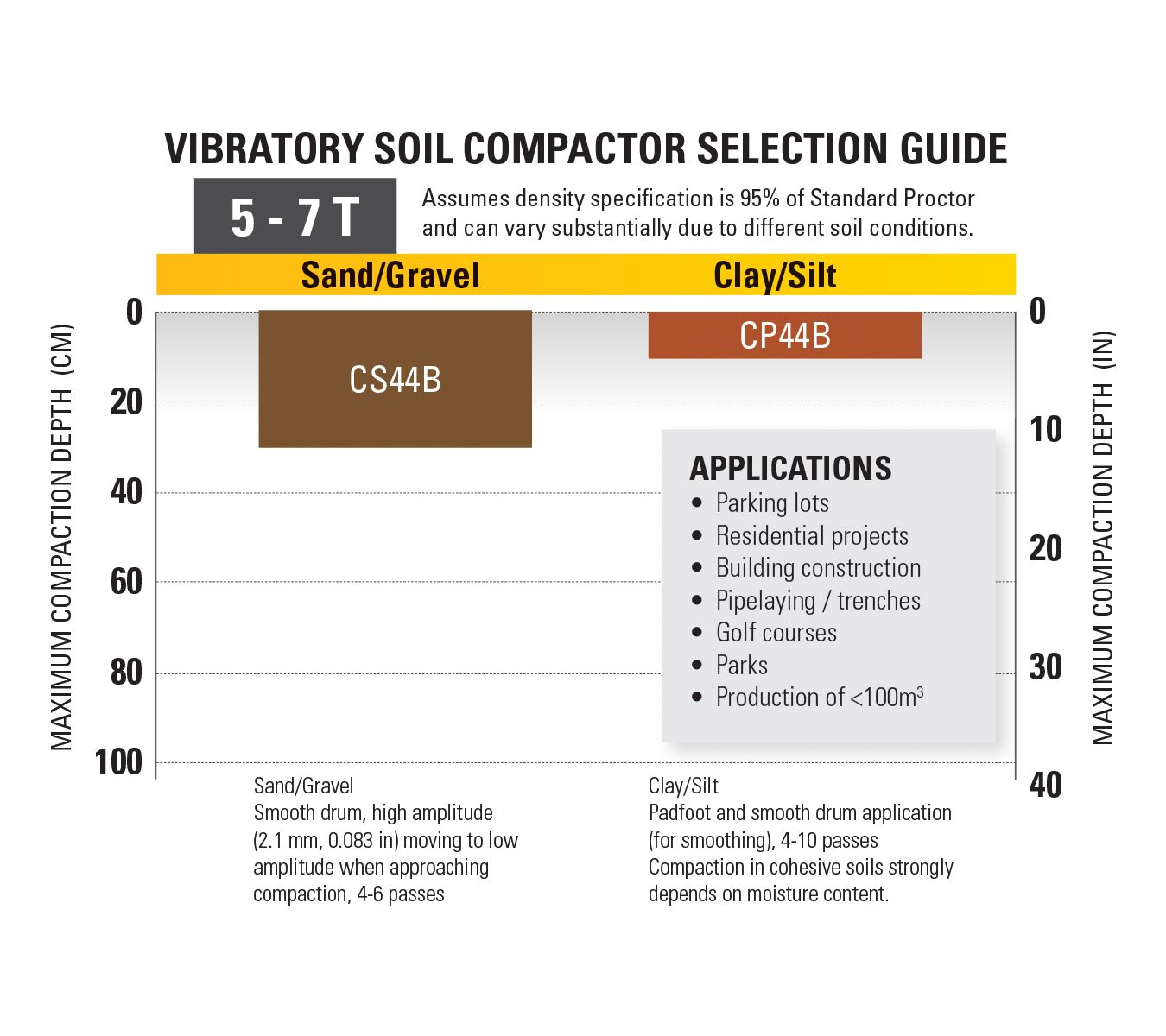

CS44B Vibratory Soil Compactor
Weights
- Operating Weight - With Cab
-
15895lb
- Weight - Drum with Cab
-
7756lb
- Weight - Drum with ROPS/FOPS
-
7460lb
Operating Specifications
- Compaction Width
-
66in
- Static Linear Load - With Cab
-
118lb/in
- Static Linear Load - With ROPS/FOPS
-
113lb/in
- Turning Radius - Inside Drum Edge
-
10ft
- Ground Clearance
-
16.2in
- Travel Speed - Maximum
-
7mile/h
Engine
- Gross Power
-
100.6HP
- Engine Model
-
Cat C3.4B
Dimensions
- Height - With ROPS/FOPS or Cab
-
9.35ft
- Optional Blade Height
-
22.6in
- Overall Length - With Blade Option
-
18.44ft
- Overall Width - With Blade Option
-
6.95ft
- Drum Diameter
-
48.1in
- Drum Width
-
66in
- Overall Length
-
16.7ft
- Overall Width
-
5.91ft
- Wheel Base
-
8.5ft
Vibratory System
- Centrifugal Force - Maximum
-
29900lb
- Centrifugal Force - Minimum
-
15000lb
- Nominal Amplitude - High
-
0.066in
- Nominal Amplitude - Low
-
0.033in
- Variable Frequency Option Range
-
23.3-31.9 Hz (1400-1914 vpm)
- Vibratory Frequency - Standard
-
1914V/m
Tires
- Tires
-
14.9 × 24 6-ply flotation
Service Refill Capacities
- Fuel Tank Capacity
-
40gal (US)
Standard Equipment:
-
- Operator Environment
-
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
-
- Vibratory System
-
- Smooth Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Universal Bumper
-
- Power Train
-
- Cat C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
-
- Electrical
-
- 12 volt Electrical System
- 150 ampere Alternator
- 60 Cold-cranking Amps Battery Capacity
-
- Other
-
- Product Link™
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- SOS℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment:
-
- Operator Environment
-
- ROPS/FOPS Cab with Climate Control
- Sun Visor
-
- Vibratory System
-
- Padfoot Shell Kit (oval or square pads available)
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Scraper Shell Kit Ready
- Recording Module for Vibration Frequency
-
- Power Train
-
- Transmission Guard
- Bio-oil Factory Fill
-
- Technology Solutions
-
- Measure - Compaction Meter Value (CMV)
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
-
- Other
-
- Upgraded Halogen Light Package
- Rotating Beacon
